158-9009 Excavator Swing Motor Piston for CAT 365B 385B 390D

나는 폴에게서 도움을 평가합니다, 그는 prefessional이고 무슨 부속을 나가 필요로 하는 정확하게 알고 있습니다. 나의 CAT는 아무 문제 없이 일하기 위하여 돌아갔습니다.

—— Raphael

마지막 드라이브를 얻고 그것의 아름다운 나는 생각합니다. 우리는, 나의 기계 지금 다시 일하기 위하여 갑니다 그것을 히타치 우리의 ZX330 굴착기에서 조립해 달라고 하는 것을 가지고 있습니다. 많은 감사

—— Kevin

빠른 배송, 도착한 부품의 품질이 우수하고 엔진이 수리되어 최대 출력으로 완벽하게 작동합니다. 감사합니다, 신의 축복이 있기를.

—— Mohammed

제가 지금 온라인 채팅 해요

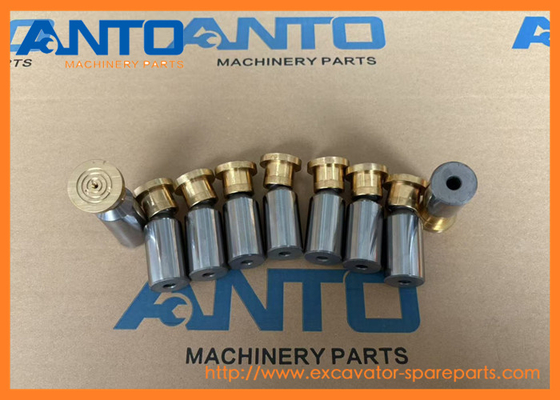

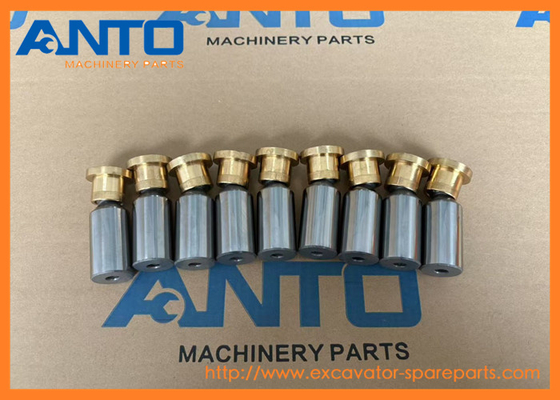

158-9009 Excavator Swing Motor Piston for CAT 365B 385B 390D

158-9009 Excavator Swing Motor Piston for CAT 365B 385B 390D
158-9009 Excavator Swing Motor Piston for CAT 365B 385B 390D 158-9009 Excavator Swing Motor Piston for CAT 365B 385B 390D

큰 이미지 :  158-9009 Excavator Swing Motor Piston for CAT 365B 385B 390D

제품 상세 정보:
Place of Origin: China
브랜드 이름: OEM
Model Number: C15 C18 3196 3456
결제 및 배송 조건:
Minimum Order Quantity: 1 PCS
가격: 75 USD / pcs
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: T/T, D/P, D/A,Western Union, L/C, MoneyGram
Supply Ability: 100-2000
상세 제품 설명
Category: Swing Motor Machine model: 365B 374D L 374F L 385B 385C 385C FS 385C L
Application: Excavator Product name: Piston
Part number: 158-9009 1589009 Packing: Standard Export Carton
강조하다:

Excavator swing motor piston

,

CAT 365B swing motor part

,

390D excavator motor component

  • 158-9009 1589009 Piston Excavator Spare Parts Fitting For C15 C18 365BL 385B 390FL





  • Specification
Name Piston
Parts No 158-9009 1589009
Machine Model 365B 374D L 374F L 385B 385C 385C FS 385C L 385C L MH 390D
Category Swing Motor
Lead time 1-3 DAYS
Quality Brand new, OEM quality
MOQ 1 PCS
Means of transport By sea/air, DHL FEDEX UPS TNT EMS
Packing As request or standard packing





  • Function

1.Power Output: It bears the pressure of the combustion gas. During the power - stroke of the engine, the high - pressure gas generated by fuel combustion pushes the piston downward. The piston then transmits this force to the connecting rod through the piston pin, and the connecting rod drives the crankshaft to rotate, thus realizing the power output of the engine. It is the direct receiver and transmitter of engine power, and its working state directly affects the engine's performance.



2.Combustion Chamber Formation: The top of the piston, together with the cylinder head and the cylinder wall, forms the combustion chamber. The shape of the piston top affects the combustion process of the fuel - air mixture. A reasonable shape can promote the full combustion of fuel, improve engine efficiency, and reduce emissions.





  • Compatible models

EXCAVATOR 365B 365B II 365C 365C L 365C L MH 374D L 374F L 385B 385C 385C FS 385C L 385C L MH 390D 390D L 390F L
FRONT SHOVEL 385C 5090B
MOBILE HYD POWER UNIT 365C L 385C 385C L C.ater.pillar.





  • More other piston parts fit for C A T machine
1683384 PISTON AS-PUMP
246D, 24M, 262D, 272D, 277D, 279D, 287D, 289D, 299D, 305.5E, 345D, 345D L, 345D L VG, 349D, 349D L, 35, 365B, 365B II, 365B L, 365C, 365C L, 365C L MH, 374D L, 385B, 414E, 416E, 416F, 422E, 422F, 424B...

1051646 PISTON AS-PUMP
120M, 120M 2, 12M, 12M 2, 12M 3, 12M 3 AWD, 140M, 140M 2, 140M 3, 140M 3 AWD, 160M, 160M 2, 160M 3, 160M 3 AWD, 365B, 365B II, 554, 621K, 623K, 623K LRC, 627K, 627K LRC, 735, 735B, 740, 740B, 776D, 77...

1559112 PISTON AS
120H, 12H, 135H, 140H, 143H, 14H, 160H, 163H, 16H, 330D L, 330D LN, 330D MH, 345B, 345B II, 345B II MH, 345B L, 345C, 345C L, 345C MH, 385B, 385C, 385C FS, 385C L, 385C L MH, 390D, 390D L, 5090B, 651E...

1850250 PISTON AS
345C, 345C L, 345C MH, 365B, 365B II, 365B L, 365C, 365C L, 365C L MH, 374D L, 385B, 385C, 385C FS, 385C L, 385C L MH, 390D, 390D L, 5090B, 966G, 966G II, 972G, 972G II, 980G, CS-533E, W345C MH

1589064 PISTON
1390, 2590, 320B, 320C, 320D, 320D FM, 320D2, 320D2 L, 322B LN, 322C, 322C FM, 323D L, 323D LN, 323D SA, 324D, 324D FM, 324D L, 324D LN, 325C, 325C FM, 325D, 325D FM, 325D L, 329D L, 329D LN, 329E, 33...

2979158 PISTON
345B II, 345C, 345C L, 365B, 365B II, 365B L, 365C, 365C L, 365C L MH, 374D L, 374F L, 385B, 385C, 385C FS, 385C L, 385C L MH, 390D, 390D L, 390F L, 5090B

2159972 PISTON
365B II, 365C, 365C L, 385B, 385C, 385C FS, 385C L, 385C L MH, 390D, 390D L, 5090B

1232111 PISTON
325B L, 325C, 325C FM, 325D FM, 325D FM LL, 330B, 330B L, 330C FM, 330D FM, 345B II, 345B II MH, 345B L, 345C, 350, 365B, 365B II, 385B, 568 FM LL, M325C MH, M325D L MH

1884216 PISTON
320C, 322C, 323D L, 324D, 324D L, 324D LN, 324E, 324E L, 324E LN, 325C, 325C FM, 325C L, 325D, 325D FM, 325D L, 326D L, 328D LCR, 329D, 329D L, 329D LN, 329E, 330C, 330C FM, 330C L, 330D, 330D FM, 330...

1850232 PISTON
324D, 329D LN, 330C, 330C L, 330C MH, 330D, 330D L, 330D LN, 330D MH, 336D, 336D L, 336D LN, 336D2, 336E HVG, 340D L, 345B II, 345C, 345C L, 345D, 345D L, 345D L VG, 349D, 349D L, 365B, 365C





  • Catalog parts list
Pos. Part No Qty Parts name Comments
1 158-8967 [1] BUSHING
2 158-8970 [1] SPACER (47X58X1.5-MM THK)
3 158-8969 [12] PIN
4 242-6922 [1] PLATE
5 158-8973 [1] PLATE
6 158-9009 [1] PISTON AS
7 295-9433 [1] BARREL
8 158-8981 [3] PLATE-FRICTION
9 158-8982 [4] PLATE-SEPARATOR
10 7Y-4277 J [1] SEAL-O-RING
11 8F-5900 J [1] SEAL-O-RING
12 185-0325 [1] PISTON-BRAKE
13 158-8978 J [1] SEAL-O-RING
14 158-8971 [1] SPACER (47X61X3-MM THK)
15 177-2550 [1] HEAD GP-MOTOR
16 110-5525 [2] PLUG
17 3J-1907 J [2] SEAL-O-RING
18 8T-9598 [1] RING-RETAINING
19 4I-5850 [1] RING
20 7Y-4269 [1] BEARING AS-ROLLER
21 158-8965 [3] SPACER (50X61X3-MM THK)
22 234-4543 [1] PLATE
23 123-2139 [20] SPRING
24 158-8968 [1] SPRING
25 8T-4241 [2] RING-RETAINING
26 234-4542 [1] BODY
27 095-0946 [1] RING-RETAINING
28 158-8979 J [1] SEAL-OIL
29 158-8964 [1] SHAFT
30 158-8976 [1] RETAINER
31 295-9432 [1] BEARING AS
32 095-1716 J [1] SEAL-O-RING
33 170-9985 [2] VALVE-PISTON
34 170-9996 [2] PLUG
35 095-1600 J [2] SEAL-O-RING
36 170-9986 [2] SPRING
37 161-7611 M [4] BOLT-SOCKET HEAD (M22X2.5X45-MM)
      AVAILABLE REPAIR KIT(S):
  177-2547 J   KIT-SEAL (SWING MOTOR)
  J   KIT MARKED J SERVICES PART(S) MARKED J
  M   METRIC PART

158-9009 Excavator Swing Motor Piston for CAT 365B 385B 390D 0







  • We could supply the following spare parts





1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.



2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.



3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.



4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.



5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.



6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.







  • Advantage



1. Offer Top quality & competitive products


2. Support 12-month warranty


3. 100% tested before shipping


4. Delivery in time


5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator


6. More than 15 years production and 11 years foreign trade experience


7. Professional QC team


8. Best sales team, 24 hours service







  • Packing and Shipping



Packing Details :



inner packing : plastic film for wrapping



external packing : wooden



Shipping :



within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.



1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,



2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.



3. By Sea: Delivery from the Huangpu port .
