제품 상세 정보:
결제 및 배송 조건:
|
| Category: | Valve Cover Mechinanism | Machine model: | 324D 324D FM 324D L 324D LN 325D |
|---|---|---|---|
| Application: | Excavator | Product name: | Crankcase Open Breather |
| Part number: | 204-4444 4133J008 | Packing: | Standard Export Carton |
| 강조하다: | Crankcase open breather excavator part,Excavator spare parts for C7 325D,4133J008 breather fitting with warranty |
||

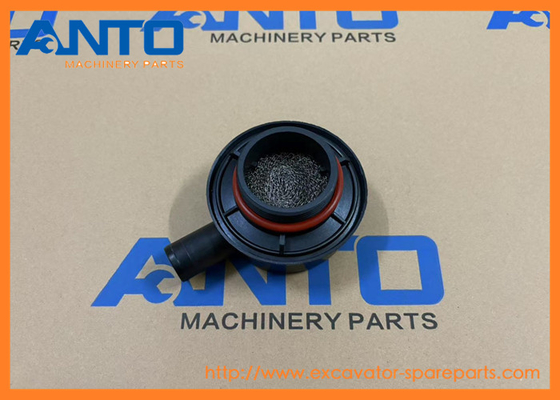

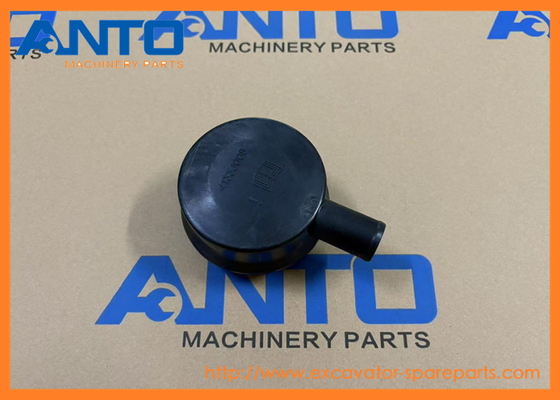

| Name | Crankcase Open Breather |
| Parts No | 204-4444 4133J008 |
| Machine Model | 324D 324D FM 324D FM LL 324D L 324D LN 325D 325D FM |
| Category | Valve Cover Mechinanism |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
Function
Its main function is to vent the blow - by gases and crankcase vapors generated during engine operation to the atmosphere. These gases contain oil vapors and other substances. At the same time, it can prevent dirt, dust, and other foreign matters from entering the crankcase, helping to maintain a clean and properly pressurized environment inside the crankcase, which is beneficial to the normal operation of the engine and can improve engine performance.
EXCAVATOR 324D 324D FM 324D FM LL 324D L 324D LN 325D 325D FM 325D FM LL 325D L 325D MH 328D LCR 329D 329D L 329D LN M325D L MH M325D MH
INDUSTRIAL ENGINE 3054 3056 C9.3
INTEGRATED TOOLCARRIER IT62H
MOBILE HYD POWER UNIT 324D LN 325D 325D L 329D L
MOTOR GRADER 12M 2 12M 3 12M 3 AWD 140M 2 140M 3 140M 3 AWD 160M 2 160M 3 160M 3 AWD
TRACK LOADER 973C 973D
TRACK-TYPE TRACTOR D6R D6R II D6R III D6R STD D6T D7R XR
TRUCK ENGINE C7
WHEEL LOADER 950H 962H 966K 972K C.aterp.illar.
| 2W9162 BREATHER AS-CRANKCASE |
| 120G, 120H, 120H ES, 120H NA, 12G, 12H, 12H ES, 12H NA, 130G, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 143H, 14G, 14H NA, 160G, 160H, 160H ES, 160H NA, 163H NA, 1673C, 214B, 235, 235B, 30/30, 3114... |
| 9G5127 BREATHER |
| 120G, 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 12G, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 130G, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 14... |
| 9G9981 BREATHER |
| 35, 446, 446B, 45, 518C, 528B, 530B, 55, 578, 583R, 587R, 587T, 589, 854G, 966G II, 966K, 972G II, 972K, 980K, 980K HLG, 980M, 982M, 992G, D10N, D11N, D11R, D11T, D6H, D6H II, D6H XL, D6H XR, D6R, D8L... |
| 2582829 BREATHER |
| 236D, 242D, 246C, 246D, 256C, 257D, 259D, 262C, 262C2, 262D, 272C, 272D, 272D XHP, 277C, 277C2, 277D, 279C, 279C2, 279D, 287C, 287C2, 287D, 289C, 289C2, 289D, 297C, 299C, 299D, 299D XHP, 621H, 621K, 6... |
| 4H6112 BREATHER |
| 1090, 117, 118, 119, 1190, 1190T, 120M, 120M 2, 127, 128, 129, 1290T, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 130G, 135H, 1390, 140B, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2... |
| 9Y2988 BREATHER AS |
| 16G, 2864C, 324D, 324D FM, 324D FM LL, 324D L, 324D LN, 325D, 325D FM, 325D FM LL, 325D L, 325D MH, 326D L, 328D LCR, 329D, 329D L, 329D LN, 336E, 336E H, 336E HVG, 336E L, 336E LH, 336E LN, 336F L, 3... |
| 1833873 BREATHER |
| 320D, 320D FM, 554, 561N, 572R II, 583T, 735, 735B, 740, 740B, 797, 797B, 953D, 963D, 966K, AP-655C, AP-800D, C18, CB-44B, CB-54, CB-54B, CB-64, CB22B, CB24B, CB32B, CB34B, CB34B XW, CC24B, CC34B, CD-... |
| 1640210 BREATHER |
| 120K, 120K 2, 12K, 12M, 140G, 140K, 140K 2, 140M, 160K, 3126, 3126B, 3126E, 322C, 322C FM, 324D, 324D FM, 324D FM LL, 324D L, 324D LN, 325C, 325C FM, 325D, 325D FM, 325D FM LL, 325D L, 325D MH, 326D L... |
| 2276221 BREATHER AS |
| 1090, 1190, 1190T, 1290T, 1390, 2290, 2390, 2391, 2491, 2590, 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 242-2450 | [1] | COVER GP | |
| 1A. | 217-5701 J | SEAL-BULK (21-DM) | ||
| 3 | 271-2417 | [1] | COVER GP-VALVE MECHANISM (BASE) | |
| 3A. | 244-4486 | [1] | SEAL-COVER | |
| 4 | 246-5083 | [13] | SLEEVE-SPACER | |
| 5 | 099-3649 M | [13] | BOLT (M8X1.25X40-MM) | |
| 6 | 8T-4224 | [13] | WASHER-HARD (8.8X16X2-MM THK) | |
| 7 | 227-4531 | [1] | CAP AS-ENGINE OIL FILLER | |
| 7F-8268 | [1] | SEAL-O-RING | ||
| 8 | 204-4444 | [1] | BREATHER AS (CRANKCASE) | |
| 341-0979 | [1] | SEAL-O-RING | ||
| 160-0526 | [1] | SEAL-O-RING | ||
| 185-3159 | [1] | FILTER ELEMENT-BREATHER (CRANKCASE) | ||
| 4C-9612 BF | SEALANT-SILICONE | |||
| B | USE AS REQUIRED | |||
| F | NOT SHOWN | |||
| J | ORDER BY THE DECIMETER | |||
| M | METRIC PART |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
