제품 상세 정보:
결제 및 배송 조건:
|
| 범주: | 연료 라인 | 모델: | 320 323 336 340 352F |
|---|---|---|---|

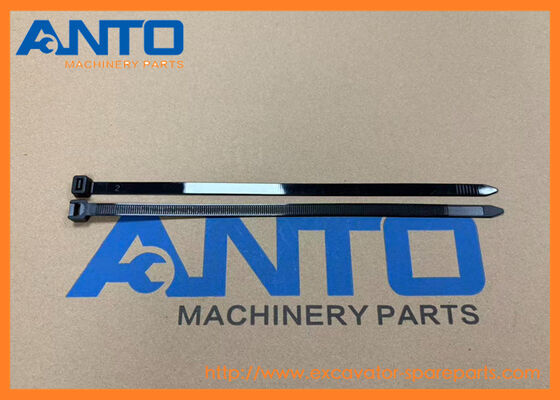

| 부품번호: | 3S-2093 7I-2673 | 부품명: | 케이블 스트랩 |
| 보증: | 3/6/12개월 | 패키지: | 표준 박스 패키지 |
| 강조하다: | Excavator cable strap spare parts,C4.4 C7.1 excavator cable strap,320 323 336 340 cable strap |
||
| Excavator spare parts name | Cable Strap |
| Equipment Model | 330D 336D |
| Part Number | 3S-2093 7I-2673 |
| Parts Category | Excavator spare parts |
| Spare parts Condition | Brand new |
| MOQ of order(PCS, SET) | 1 |
| Parts Availability | In stock |
| Delivery Lead time | 1-3 days |
| Core Purpose: Secure, organize, and bundle electrical wires, cables, and hoses on C A T machinery. |
| Application: Used in electrical systems, engine bays, hydraulic systems, and chassis wiring on excavators, loaders, generators, and industrial engines. |
| Key Trait: Heavy-duty construction to withstand vibration, extreme temperatures, oil, and harsh working environments (meets/exceeds ANSI/ASTM/DIN standards). |
| Specification | 3S-2093 | 7I-2673 |
| Total Length | 202 mm (7.95 in) | 210 mm (8.27 in) |
| Strap Width | Standard (~4.6 mm) | 4.6 mm |
| Max Bundle Diameter | ~19 mm | 19 mm |
| Color | Natural (white/clear) | Black |
| Head Style | Standard self-locking | Standard self-locking |
| ASPHALT PAVER AP-1055D AP-655C BG-2455D BG-260D |
| BACKHOE LOADER 422E 428E 432E 434E 442E 444E |
| COMPACT WHEEL LOADER 904B 906H 906H2 907H 907H2 908H 908H2 |
| EXCAVATOR 311B 311C 311D LRR 311F LRR 312B 312B L 312C 312C L 312D 312D L 312D2 312D2 GC 312D2 L 312E 312E L 313B 313D 313D2 313D2 LGP 314C 314D CR 314D LCR 314E CR 314E LCR 315B 315B FM L 315B L 315C 315D L 316E L 317B LN 318B 318C 318D L 318D2 L 318E L 319C 319D 319D L 319D LN 320B 320B FM LL 320B U 320C 320C FM 320C L 320D 320D FM 320D FM RR 320D GC 320D L 320D LN 320D LRR 320D RR 320D2 320D2 GC 320D2 L 320E 320E L 320E LN 320E LRR 320E RR 321C 321D LCR 322C 322C FM 323D L 323D LN 323D SA 323D2 L 323E L 324D 324D FM 324D FM LL 324D L 324D LN 324E 324E L 324E LN 325C 325C FM 325C L 325D 325D FM 325D FM LL 325D L 325D MH 326D L 328D LCR 329D 329D L 329D LN 329E 329E L 329E LN 330B 330B L 330C 330C FM 330C L 330C MH 330D 330D FM 330D L 330D LN 330D MH 336D 336D L 336D LN 336D2 336D2 L 336E 336E H 336E L 336E LH 336E LN 336F L 340D L 340D2 L 345C 345C L 345C MH 345D 345D L 345D L VG 349D 349D L 349E 349E L 349E L VG 349F L 365C 365C L 365C L MH 374D L 374F L 385C 385C FS 385C L 385C L MH 390D 390D L 390F L 568 FM LL M325D L MH M325D MH |
| FRONT SHOVEL 385C |
| INTEGRATED TOOLCARRIER IT14G |
| LOGGER 322C |
| MATERIAL HANDLER MH3037 |
| MINI HYD EXCAVATOR 302.5C 303 303.5 303.5C 303.5D 303.5E 303C CR 303E CR 304 304.5 304C CR 304D CR 304E 305 305.5 305.5D 305.5E 305C CR 305D CR 305E 306 306E 307 307C 307D 307E 308 |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 8T-4136 M | [19] | BOLT (M10X1.5X25-MM) | |
| 2 | 8T-4182 M | [1] | BOLT (M10X1.5X45-MM) | |
| 3 | 8T-4196 M | [4] | BOLT (M10X1.5X35-MM) | |
| 4 | 7X-2539 M | [2] | BOLT (M8X1.25X110-MM) | |
| 5 | 8T-4198 M | [1] | BOLT (M10X1.5X100-MM) | |
| 7 | 4I-0379 | [1] | VALVE-MANUAL (FUEL SHUTOFF) | |
| 8 | 5G-3676 | [2] | GROMMET | |
| 9 | 5V-9155 | [1] | CLAMP-HOSE | |
| 10 | 6S-8620 | [11] | CLAMP-HOSE | |
| 11 | 7I-2673 | [3] | STRAP-CABLE | |
| 12 | 7V-6571 | [1] | GROMMET | |
| 13 | 7X-0579 | [3] | WASHER-HARD (8.8X25.5X2-MM THK) | |
| 14 | 7Y-3195 | [3] | GROMMET | |
| 15 | 8T-1889 | [3] | CLIP (SLOT) | |
| 16 | 8T-1890 | [3] | CLIP (TAB) | |
| 17 | 8T-4121 | [31] | WASHER-HARD (11X21X2.5-MM THK) | |
| 18 | 8T-4137 M | [6] | BOLT (M10X1.5X20-MM) | |
| 19 | 8T-6869 M | [1] | BOLT (M8X1.25X60-MM) | |
| 20 | 8T-9655 | [6] | MOUNT-ISOLATION | |
| 21 | 169-9763 | [1] | CONNECTOR | |
| 22 | 191-1782 | [1] | SPACER (8.5X12.7X38.2-MM THK) | |
| 23 | 191-1783 | [2] | SPACER (8.5X12.7X87.3-MM THK) | |
| 24 | 214-7568 | [5] | SEAL-O-RING | |
| 25 | 228-7089 | [1] | SEAL-O-RING | |
| 26 | 275-1442 | [2] | CLIP (TAB) | |
| 27 | 275-1443 | [2] | CLIP (SLOT) | |
| 28 | 297-7964 | [2] | CONNECTOR | |
| 29 | 305-6873 | [1] | SENSOR GP-PRESSURE (FUEL PRIMING PUMP) | |
| 30 | 313-3492 | [1] | PLUG AS | |
| 9S-4190 | [1] | PLUG-O-RING (7/8-14-THD) | ||
| 238-5081 | [1] | SEAL-O-RING | ||
| 31 | 321-8657 | [1] | ELBOW AS | |
| 6V-8076 | [1] | ELBOW | ||
| 214-7568 | [1] | SEAL-O-RING | ||
| 32 | 329-5459 | [2] | ADAPTER AS | |
| (EACH INCLUDES) | ||||
| 5P-1404 | [1] | ADAPTER | ||
| 238-5081 | [1] | SEAL-O-RING | ||
| 33 | 347-4416 | [2] | ADAPTER | |
| 34 | 351-4319 | [9] | CLIP (LOOP) | |
| 35 | 353-5142 | [1] | ADAPTER AS | |
| 219-8136 | [1] | ADAPTER | ||
| 238-5081 | [1] | SEAL-O-RING | ||
| 36 | 353-5143 | [1] | ADAPTER AS | |
| 6V-5653 | [1] | ELBOW (7/8-14-THD) | ||
| 238-5081 | [1] | SEAL-O-RING | ||
| 37 | 368-6658 | [1] | VALVE | |
| 38 | 379-4369 | [1] | ADAPTER | |
| 39 | 385-3821 | [2] | GROMMET | |
| 40 | 390-6840 Y | [1] | PUMP GP-FUEL PRM & PRIM FILTER | |
| 41 | 423-6434 Y | [1] | SENSOR GP-LIQUID LEVEL (WATER IN FUEL) | |
| 42 | 464-8596 | [1] | ADAPTER-TEE | |
| 43 | 483-7801 | [1] | SPACER (11X20X15-MM THK) | |
| 44 | 501-7449 | [1] | ADAPTER AS | |
| 214-7568 | [1] | SEAL-O-RING | ||
| 504-2756 | [1] | ADAPTER | ||
| 45 | 517-3178 | [1] | HOSE AS | |
| 355-0632 | [1] | CONNECTOR-SPECIAL | ||
| 46 | 523-9010 Y | [1] | FILTER GP-FUEL | |
| 47 | 524-5076 | [1] | HOSE AS | |
| 48 | 524-5077 | [1] | HOSE AS | |
| 5V-9155 | [1] | CLAMP-HOSE | ||
| 264-3518 | [1] | CONNECTOR-RECEPTACLE | ||
| 49 | 524-5078 | [1] | HOSE AS | |
| 6S-8620 | [2] | CLAMP-HOSE | ||
| 355-0632 | [2] | CONNECTOR-SPECIAL | ||
| 50 | 524-5079 | [1] | HOSE AS | |
| 6S-8620 | [2] | CLAMP-HOSE | ||
| 355-0632 | [2] | CONNECTOR-SPECIAL | ||
| 53 | 524-5085 | [1] | PLATE AS | |
| 9R-2672 M | [2] | BOSS-THREADED (M10X1.5X120-MM) | ||
| 54 | 524-5086 | [1] | PLATE AS | |
| 57 | 233-9821 | [1] | VALVE AS-CHECK | |
| 033-6042 | [1] | SEAL-O-RING | ||
| 58 | 343-2387 | [3] | CLIP (LOOP) | |
| 59 | 351-4315 | [2] | CLIP | |
| 60 | 351-4318 | [8] | CLIP (LOOP) | |
| 61 | 351-4320 | [4] | CLIP (LOOP) | |
| 62 | 353-5112 | [1] | ADAPTER AS | |
| 9X-0262 | [1] | ADAPTER | ||
| 214-7566 | [2] | SEAL-O-RING | ||
| 63 | 437-2150 | [2] | CLIP (LOOP) | |
| 64 | 7I-1024 E | GUARD-HOSE (59-CM) | ||
| 65 | 347-8645 E | HOSE (38-CM) | ||
| 65A. | 347-8645 E | HOSE (273-CM) | ||
| 65B. | 347-8645 E | HOSE (147-CM) | ||
| 66 | 347-8646 E | HOSE (71-CM) | ||
| 66A. | 347-8646 E | HOSE (211-CM) | ||
| 66B. | 347-8646 E | HOSE (139-CM) | ||
| 67 | 7I-7439 E | GUARD-HOSE (40-CM) | ||
| 67A. | 7I-7439 E | GUARD-HOSE (18-CM) | ||
| 68 | 095-1386 | [2] | CLAMP-HOSE | |
| E | ORDER BY THE CENTIMETER | |||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION |
1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.
2. Warranty type: replacement of the parts that have quality problem.
3. Warranty is not valid for below s
* Cutomer give wrong information about the order
* Force Majeure
* Wrong installation and operation
* Rust because of wrong stock & maintenance
* Strong carton or wooden box for gear components. Wooden box for gearbox assembly
* Delivery methods: By Sea, By air to local internation airport, By express like DHL TNT FEDEX
