제품 상세 정보:
결제 및 배송 조건:
|
| 범주: | 냉각 시스템 | 기계 모델: | PC200 PC210 PC220 PC240 PC290 |
|---|---|---|---|
| 제품 이름: | 콘덴서 ASSY | 애플리케이션: | 굴착기 |
| 부품 번호: | 2A5-979-1281 2A5-979-1282 | 포장: | 표준 내보내기 상자 |
| 강조하다: | Komatsu excavator condenser assembly,PC240LC-10 condenser spare part,PC290LC-10 excavator condenser with warranty |
||

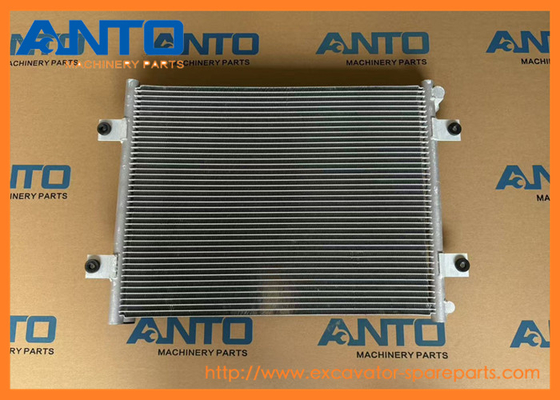

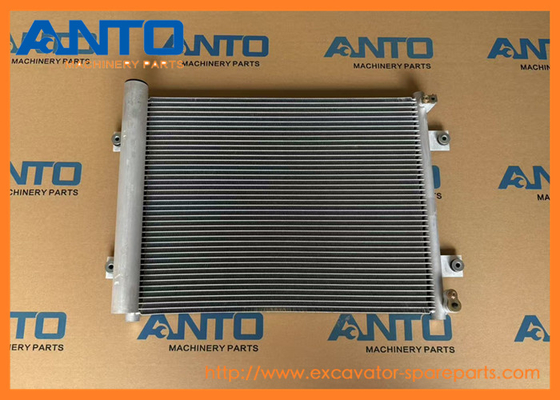

| Name | Condenser Assy |
| Parts No | 2A5-979-1281 2A5-979-1282 |
| Machine Model | HB215 PC138 PC138US PC200 PC210 PC220 PC240 PC290 |
| Category | Cooling System |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
Similar to ordinary condensers, they are key heat exchanger parts in refrigeration systems. Their main job is to cool and condense the high-temperature, high-pressure refrigerant superheated vapor discharged by the compressor into liquid, and transfer the released heat to the outside cooling medium (usually air or water). This process is essential to keep the refrigeration or air conditioning cycle working properly.
EXCAVATORS HB205 HB215 PC138 PC138US PC200 PC210 PC220 PC240 PC290 Komatsu
| 20Y-979-7520 CONDENSER ASS'Y |
| PC200, PC220 |
| 203-979-6820 CONDENSER ASS'Y |
| GD355A, GD405A, PC100, PC100L, PC100N, PC120, PC120SC, PC130, PC200, PC200CA, PC210, PC400, PC400ST, PC450 |
| 22L-979-2222 CONDENSER |
| PC27MR, PC30MR, PC35MR, PC40MR, PC45MR, PC50MR, PC55MR |
| 421-07-31230 CONDENSER ASS'Y |
| GD825A, WA380, WA400, WA430, WA450, WA470, WA480 |
| 56E-07-21133 CONDENSER ASS'Y |
| FRONT, GD655, GD675, GD755, HD325, HD405, HD465, HD605, HD785, HYDRAULIC, WA270, WA320, WA320PZ, WA380, WA500 |
| 20Y-978-1200 CONDENSER ASS'Y |
| PC200, PC220 |
| 21W-979-4120 CONDENSER ASS'Y |
| PC78MR, PC78US, PC78UU |
| 42C-07-11220 CONDENSER |
| WA1200 |
| 21W-978-2611 CONDENSER |
| PC30MR, PC30UU, PC50UU, PC50UUM, PC58SF, PC75UD, PC75UU |
| 21W-978-2610 CONDENSER |
| PC50UU, PC75UD, PC75UU |
| 21W-978-2220 CONDENSER |
| PC50UU, PC75UD, PC75UU |
| 207-978-5200 CONDENSER ASS'Y |
| PC300, PC300HD, PC310, PC400, PC400HD, PC410 |
| 569-07-61120 CONDENSER ASS'Y |
| HD325, HD465, HD785, PC650, PC650SE, PC710, PC710SE |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 208-03-71161 | [1] | Fuel Cooler Komatsu | 0.85 kg. |
| ["SN: 90001-UP"] analogs:["2080371160"] | ||||
| 2 | 01010-80825 | [4] | Bolt Komatsu | 0.015 kg. |
| ["SN: 90001-UP"] analogs:["0101050825", "01010D0825", "801015087"] | ||||
| 3 | 01643-30823 | [4] | Washer Komatsu | 0.004 kg. |
| ["SN: 90001-UP"] analogs:["802070008", "802150008", "0160510818", "0164310823", "802170001", "01643A0823"] | ||||
| 4 | 2A5-03-12130 | [2] | Elbow Komatsu China | |
| ["SN: 90001-UP"] | ||||
| 5 | 07002-12034 | [2] | O-ring Komatsu China | 0.94 kg. |
| ["SN: 90001-UP"] analogs:["0700002034", "0700202034", "0700012034"] | ||||
| 6 | 2A5-03-11330 | [1] | Cover Komatsu China | |
| ["SN: 90001-UP"] | ||||
| 7 | 01010-81020 | [2] | Bolt Komatsu | 0.161 kg. |
| ["SN: 90001-UP"] analogs:["801014093", "0101051020", "801015108"] | ||||
| 8 | 01643-31032 | [2] | Washer Komatsu | 0.054 kg. |
| ["SN: 90001-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | ||||
| 9 | 2A5-03-11291 | [1] | Bracket Komatsu China | |
| ["SN: 90001-UP"] | ||||
| 12 | 2A5-03-11281 | [1] | Bracket Komatsu China | |
| ["SN: 90001-UP"] | ||||
| 13. | 198-06-62820 | [2] | Hinge,Welded Komatsu China | |
| ["SN: 90001-UP"] | ||||
| 16 | 01010-81030 | [2] | Bolt Komatsu OEM | 0.03 kg. |
| ["SN: 90001-UP"] analogs:["801015110", "M018011000306", "YM26116100302", "0101051030"] | ||||
| 18 | 2A5-979-1281 | [1] | Condenser Assembly Komatsu China | |
| ["SN: 90001-UP"] | ||||
| 19 | 20Y-810-1240 | [4] | Cushion Komatsu | 0.05 kg. |
| ["SN: 90001-UP"] | ||||
| 20 | 01010-80835 | [4] | Bolt Komatsu | 0.019 kg. |
| ["SN: 90001-UP"] | ||||
| 22 | 2A5-03-11632 | [1] | Tube Komatsu China | |
| ["SN: 90001-UP"] | ||||
| 25 | 21T-62-69711 | [8] | Clamp, Hose Komatsu | 0.14 kg. |
| ["SN: 90001-UP"] | ||||
| 26 | 2A5-03-11651 | [1] | Bracket Komatsu China | |
| ["SN: 90001-UP"] | ||||
| 29 | 2A5-03-11641 | [1] | Tube Komatsu China | |
| ["SN: 90001-UP"] | ||||
| 32 | 2A5-03-11661 | [1] | Plate Komatsu China | |
| ["SN: 90001-UP"] | ||||
| 35 | 07283-36365 | [2] | Clip, Pipe Komatsu China | |
| ["SN: 90001-UP"] | ||||
| 36 | 07283-56374 | [2] | Seat, Pipe Clip Komatsu China | |
| ["SN: 90001-UP"] | ||||
| 38 | 01597-01009 | [4] | Nut Komatsu | 0.011 kg. |
| ["SN: 90001-UP"] | ||||
| 39 | 2A5-03-11610 | [2] | Hose Komatsu China | |
| ["SN: 90001-UP"] | ||||
| 40 | 2A5-03-11621 | [1] | Hose Komatsu China | |
| ["SN: 90001-UP"] | ||||
| 41 | 2A5-03-11960 | [1] | Hose Komatsu China | |
| ["SN: 90001-UP"] | ||||
| 42 | 07289-00055 | [4] | Clamp Komatsu | 0.058 kg. |
| ["SN: 90001-UP"] analogs:["802660176"] | ||||
| 43 | 2A5-03-11940 | [3] | Clip Komatsu China | |
| ["SN: 90001-UP"] | ||||
| 44 | 01010-81230 | [2] | Bolt Komatsu | 0.043 kg. |
| ["SN: 90001-UP"] analogs:["0101051230", "01010B1230"] | ||||
| 45 | 01643-31232 | [2] | Washer Komatsu | 0.027 kg. |
| ["SN: 90001-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 46 | 01010-81045 | [1] | Bolt Komatsu | 0.039 kg. |
| ["SN: 90001-UP"] analogs:["0101051045", "01010D1045"] | ||||
| 48 | 175-79-83760 | [1] | Spacer Komatsu | 0.05 kg. |
| ["SN: 90001-UP"] analogs:["1750631121"] | ||||
| 49 | 2A5-03-11581 | [1] | Hose Komatsu China | |
| ["SN: 90001-UP"] | ||||
| 50 | 206-03-35440 | [1] | Hose Komatsu China | |
| ["SN: 90001-UP"] | ||||
| 51 | 2A5-03-11821 | [2] | Stay Komatsu China | |
| ["SN: 90001-UP"] | ||||
| 52 | 01010-81640 | [2] | Bolt Komatsu | 0.264 kg. |
| ["SN: 90001-UP"] analogs:["0101061640", "801015186", "0101031640", "0101051640"] | ||||
| 53 | 21T-54-16150 | [2] | Washer Komatsu | 0.06 kg. |
| ["SN: 90001-UP"] |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
