| 범주: | 후면 서스펜션 | 기계 모델: | HD325 HD405 |
|---|---|---|---|
| 애플리케이션: | 덤프 트럭 | 제품 이름: | 부싱 |
| 부품 번호: | 566-50-11181 5665011181 | 포장: | 표준 내보내기 상자 |
| 강조하다: | Komatsu dump truck bushing,HD325-6W spare parts,excavator bushing with warranty |
||

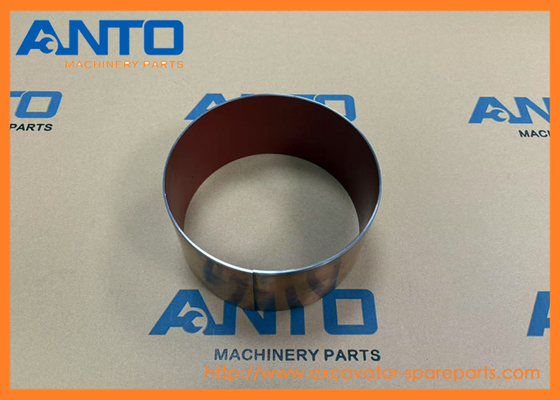

| Name | Bushing |
| Parts No | 566-50-11181 5665011181 |
| Machine Model | HD325 HD405 |
| Category | Rear Suspension |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
1.Supporting: It serves as an essential support component within various Komatsu machinery. For example, in the arm and lift arm structures of excavators, it supports rotating or moving parts, ensuring they maintain the correct position and axis alignment, thus facilitating the smooth operation of the mechanical system.
2.Reducing Friction: The bushing can reduce the friction between moving parts. By being installed between components that are in relative motion, such as pins and pin holes, it converts sliding friction into lower - resistance friction between the bushing and the pin, reducing wear and tear on the components and improving the efficiency and service life of the equipment.
3.Shock - Absorbing: To a certain extent, it can also absorb shocks and vibrations generated during the operation of the equipment, reducing the impact forces on the components and protecting the integrity of the equipment structure.
| 569-50-6A180 BUSHING |
| HD325, HD405, HD465, HD605 |
| 569-15-31230 BUSHING |
| HD325, HD405, HD465, HD785, WS23S |
| 705-17-01350 BUSHING |
| 330M, 538, 542, 568, BOTTOM, D155A, D31P, D31PL, D31PLL, D31Q, D31S, D31SM, DNP031, HD325, HD405, HD785, HM250, HM300, HM350, HM400, HYDRAULIC, PC1250, PC1250SP, WA270, WA320, WA500, WA800, WA900 |
| 569-40-65530 BUSHING |
| 330M, HD325, HD405, HD465, HD605, HD785, HD985 |
| 705-17-03352 BUSHING |
| BATTERY, D155A, D155AX, D275A, D85EX, D85MS, D85PX, DRAWBAR,, HD325, HD405, HM300, HM400, HYDRAULIC, WA1200, WA150, WA150PZ, WA200, WA200PZ, WA250, WA250PZ, WA380, WA470, WA480, WA500, WA600, WA800, W... |
| 07177-05030 BUSHING |
| 505, 510, 520B, 540, 540B, 545, BC100, BOOM,, BR120T, CARRIER, CD60R, CS210, CS360, CS360SD, D155C, D30AM, D31A, D31AM, D31E, D31P, D31PG, D31PL, PC45MR, PC55MR, PC78US, PC78UU, PC88MR |
| 07177-09035 BUSHING |
| 530, 530B, 538, 540, 540B, 542, D150A, D155A, D155W, D275A, D355A, D375A, D50A, D50P, D50PL, D50S, D53A, D53P |
| ND146625-2630 BUSHING |
| GD511A, GD611A, GD621R, GD661A, GD663A, GD705A, GD825A, HD255, HD325, HD405, HD465, HD605, HD785, WA1200, WA800, WA900 |
| 566-52-41920 BUSHING |
| HD325, HD405, HD465, HD605 |
| 232-71-13290 BUSHING |
| GD31, GD37 |
| 232-71-13270 BUSHING |
| GD31, GD37 |
| 232-71-13140 BUSHING |
| GD28AC, GD30, GD31, GD31RC, GD37, GD40HT, GD600R, GD605A, GD705R |
| 232-71-13180 BUSHING |
| GD37 |
| 230-71-11560 BUSHING |
| GD30 |
| 230-71-11551 BUSHING |
| GD30 |
| GD371T310 BUSHING |
| GD37 |
| GD371T309 BUSHING |
| GD37 |
| 144-820-7170 BUSHING,MASTER |
| D60P, D60PL |
| 428-70-11861 BUSHING |
| WA700, WA800, WA800L, WA900, WA900L |
| 42C-70-11312 BUSHING |
| WA1200 |
| 144-32-11170 BUSHING,MASTER |
| D60A, D60P, D60PL, D60S, D65A, D65E, D65S |
| Pos. | Part No | Qty | Parts name | Comments |
| 566-50-74006 | [1] | CYLINDER ASS'Y Komatsu | 109 kg. | |
| ["SN: 6528-UP"] analogs:["5665074007", "5665074003"] |$0. | ||||
| 566-50-74005 | [1] | CYLINDER ASS'Y Komatsu | 109 kg. | |
| ["SN: 5836-6527"] analogs:["5665074007", "5665074003"] |$1. | ||||
| 566-50-74004 | [1] | CYLINDER ASS'Y Komatsu | 109 kg. | |
| ["SN: 5680-5835"] analogs:["5665074007", "5665074003"] |$2. | ||||
| 566-50-74003 | [1] | CYLINDER ASS'Y Komatsu | 109 kg. | |
| ["SN: 5485-5679"] analogs:["5665074007"] |$3. | ||||
| 1. | 566-50-62110 | [1] | CYLINDER Komatsu China | |
| ["SN: 5485-UP"] | ||||
| 2. | 566-50-62130 | [1] | ROD Komatsu China | |
| ["SN: 5485-UP"] | ||||
| 3. | 566-50-11170 | [1] | RING,WEAR Komatsu | 0.46 kg. |
| ["SN: 5485-UP"] | ||||
| 4. | 566-50-82180 | [1] | BUSHING Komatsu | 0.64 kg. |
| ["SN: 6528-UP"] analogs:["5665011181"] | ||||
| 4. | 566-50-11181 | [1] | BUSHING Komatsu | 0.64 kg. |
| ["SN: 5485-6527"] | ||||
| 5. | 655-50-82150 | [1] | FLANGE Komatsu China | |
| ["SN: 6528-UP"] | ||||
| 5. | 566-50-62150 | [1] | FLANGE Komatsu China | |
| ["SN: 5485-6527"] | ||||
| 6. | 07001-05190 | [1] | RING,BACK-UP Komatsu | 0.015 kg. |
| ["SN: 5485-UP"] | ||||
| 7. | 07000-15190 | [1] | O-RING Komatsu | 0.022 kg. |
| ["SN: 5485-UP"] analogs:["0700005190"] | ||||
| 8. | 566-50-6A410 | [1] | PACKING Komatsu | 0.12 kg. |
| ["SN: 6528-UP"] analogs:["5665042151", "5665042152"] | ||||
| 8. | 566-50-42152 | [1] | PACKING Komatsu | 0.12 kg. |
| ["SN: 5485-6527"] analogs:["5665042151", "566506A410"] | ||||
| 8. | 566-50-42151 | [1] | PACKING Komatsu | 0.12 kg. |
| ["SN: (5485-5835)"] analogs:["566506A410", "5665042152"] | ||||
| 8A. | 707-51-16650 | [1] | RING Komatsu | 0.032 kg. |
| ["SN: 6528-UP"] | ||||
| 9. | 566-50-62160 | [1] | RETAINER Komatsu China | |
| ["SN: 5485-UP"] analogs:["R5665062160"] | ||||
| 10. | 566-50-11280 | [1] | BUSHING Komatsu | 0.1 kg. |
| ["SN: 5485-UP"] analogs:["5665011281"] | ||||
| 11. | 566-50-61230 | [1] | SEAL Komatsu | 0.13 kg. |
| ["SN: 5485-UP"] analogs:["5695061230"] | ||||
| 12. | 566-50-62120 | [1] | PLATE Komatsu China | |
| ["SN: 5485-5679"] analogs:["R5665062120"] | ||||
| 13. | 01011-81000 | [16] | BOLT Komatsu | 0.08 kg. |
| ["SN: 6528-UP"] analogs:["801015567"] | ||||
| 13. | 01010-81085 | [16] | BOLT Komatsu | 0.063 kg. |
| ["SN: 5485-6527"] | ||||
| 14. | 01643-31032 | [16] | WASHER Komatsu | 0.054 kg. |
| ["SN: 5485-UP"] analogs:["802150510", "0164331030", "0164381032", "0164371032", "0164331022", "0164321032", "0164301032", "6127212530", "802170002", "R0164331032"] | ||||
| 15. | 566-50-11461 | [2] | BEARING Komatsu | 1.1 kg. |
| ["SN: 5485-UP"] analogs:["5665211461"] | ||||
| 16. | 04065-09030 | [4] | RING Komatsu | 0.03 kg. |
| ["SN: 5485-UP"] analogs:["2324013250", "R0406509030"] | ||||
| 561-86-67700 | [1] | VALVE ASS'Y Komatsu | 0.26 kg. | |
| ["SN: 5680-UP"] |$26. | ||||
| 561-86-67500 | [1] | VALVE ASS'Y Komatsu | 0.26 kg. | |
| ["SN: 5485-5679"] |$27. | ||||
| 17 | 561-86-67710 | [1] | VALVE Komatsu | 0.2 kg. |
| ["SN: 5680-UP"] | ||||
| 17 | 561-86-67510 | [1] | VALVE Komatsu | 0.16 kg. |
| ["SN: 5485-5679"] | ||||
| 18 | 561-86-67520 | [1] | NIPPLE Komatsu | 0.09 kg. |
| ["SN: 5485-5679"] | ||||
| 19 | 281-50-11721 | [1] | CORE,VALVE Komatsu | 0.01 kg. |
| ["SN: 5485-UP"] | ||||
| 20 | 07000-51009 | [1] | O-RING Komatsu China | 0.03 kg. |
| ["SN: 5485-5679"] analogs:["0700041009"] | ||||
| 21 | 07048-01310 | [1] | PLUG Komatsu China | |
| ["SN: 5485-5679"] | ||||
| 22. | 566-50-11350 | [1] | PACKING Komatsu | 0.008 kg. |
| ["SN: 5485-UP"] | ||||
| 23. | 566-50-11301 | [1] | VALVE ASS'Y Komatsu | 0.12 kg. |
| ["SN: 5485-UP"] | ||||
| 25. | 569-50-6B240 | [1] | COVER Komatsu China | |
| ["SN: 5485-UP"] | ||||
| 26. | 103-21-21260 | [2] | BOSS Komatsu | 0.06 kg. |
| ["SN: 5485-UP"] | ||||
| 27. | 01010-81016 | [2] | BOLT Komatsu | 0.06 kg. |
| ["SN: 5485-UP"] analogs:["0101051016"] | ||||
| 29. | 566-50-62190 | [1] | GUARD Komatsu China | |
| ["SN: 5485-UP"] | ||||
| 30. | 566-09-6A110 | [1] | CLAMP Komatsu | 0.092 kg. |
| ["SN: 5680-UP"] | ||||
| 30. | 07281-12709 | [1] | CLAMP Komatsu China | |
| ["SN: 5485-5679"] |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
