제품 상세 정보:
결제 및 배송 조건:
|
| 엔진 모델: | 3066 | 기계 모델: | 320 L 320B 320B U 320N |
|---|---|---|---|
| 애플리케이션: | 굴착기 | 제품 이름: | 파이프 |
| 부품 번호: | 5i-7734 5i7734 | 포장: | 표준 내보내기 상자 |
| 강조하다: | Excavator pipe fitting for 3066,320B excavator spare parts,Excavator pipe fitting with warranty |
||

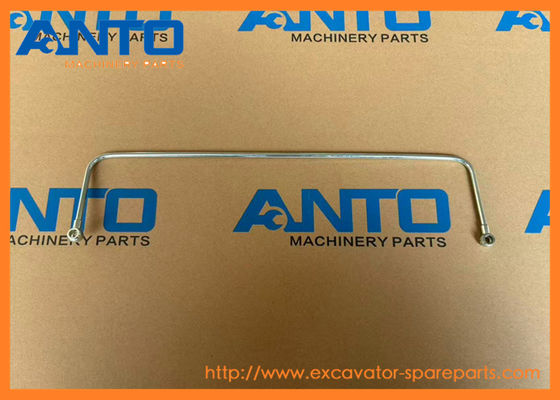

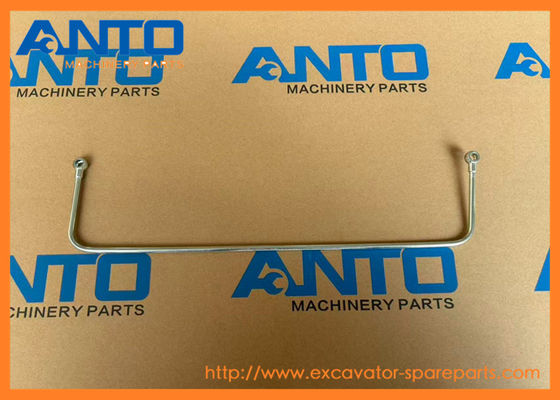

| Name | High-Pressure Fuel Pipe |
| Parts No | 5I-7734 5I7734 |
| Machine Model | 320 L 320B 320B U 320N |
| Category | Diesel Pump |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
When the engine is running, the fuel injection pump pressurizes the fuel to 100–200 MPa. The fuel is then precisely delivered to the injectors via the 5I-7734 high-pressure fuel line, where it is injected into the combustion chamber at the desired moment. The fuel line must withstand high-frequency fuel pulsation and mechanical vibration, making its rigidity, sealing, and fatigue resistance crucial.
| 5I7707 PIPE |
| 320 L, 320B, 320B L, 320N |
| 5I7708 PIPE |
| 320 L, 320B, 320B L, 320N |
| 5I7709 PIPE |
| 320 L, 320B, 320B L, 320N |
| 5I7710 PIPE |
| 320 L, 320B, 320B L, 320N |
| 5I7711 PIPE |
| 320 L, 320B, 320B L, 320N |
| 5I7712 PIPE |
| 320 L, 320B, 320B L, 320N |
| 5I8044 PIPE |
| 320B, 320C, 320C FM |
| 5I8045 PIPE |
| 320B, 320C, 320C FM |
| 5I8046 PIPE |
| 320B, 320C, 320C FM |
| 5I8047 PIPE |
| 320B, 320C, 320C FM |
| 5I8048 PIPE |
| 320B, 320C, 320C FM |
| 5I7548 PIPE |
| 320 L |
| 1232773 PIPE AS |
| 322B LN, 325B L |
| 1232771 PIPE AS |
| 322B LN, 325B L |
| 1961095 PIPE |
| 322B LN, 325B L, 330B L |
| 1241264 PIPE AS |
| 320B, 320B FM LL, 322B LN |
| 1620345 PIPE AS |
| 322B LN, 325B L, 330B L |
| 1099322 PIPE AS-EXHAUST |
| 322B LN, 325B L |
| 1241654 PIPE AS |
| 320B |
| 1189823 PIPE AS |
| 320B |
| 1189827 PIPE AS |
| 320B |
| 7Y1938 PIPE AS |
| 320 L, 320B, 320B FM LL, 320B U, 320N, 321B |
| 5I7977 PIPE |
| 320 L, 320B, 320B L, 320N, 321B |
| 5I8061 PIPE |
| 320 L, 320B, 320N |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 5I-5029 | [2] | BOLT (M8X1.25X17-MM) | |
| 2 | 5I-5038 | [1] | SEAL-O-RING | |
| 3 | 5I-7640 | [1] | SPRING | |
| 4 | 5I-7642 | [1] | PLATE | |
| 5 | 5I-7643 | [1] | VALVE | |
| 6 | 5I-7644 | [1] | PLUG | |
| 7 | 5I-7687 | [1] | STRAINER | |
| 8 | 5I-7734 | [1] | PIPE | |
| 9 | 5I-8058 | [1] | CONNECTOR | |
| 10 | 5I-8061 | [1] | PIPE | |
| 11 | 8T-4200 M | [4] | BOLT (M8X1.25X16-MM) | |
| 12 | 8T-4224 | [3] | WASHER-HARD (8.8X16X2-MM THK) | |
| 13 | 9J-2089 | [1] | WASHER | |
| 14 | 095-2038 | [4] | WASHER (7.8X13.5X2-MM THK) | |
| 15 | 3B-4505 | [4] | LOCKWASHER | |
| M | METRIC PART |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
