제품 상세 정보:
결제 및 배송 조건:
|
| 범주: | 바닥 프레임 | 부품 번호: | 702-16-01682 7021601682 |
|---|---|---|---|
| 제품 이름: | 파일럿 밸브 | 기계 번호: | PC1100 PC1100SE PC1100SP PC1250 |
| 애플리케이션: | 굴착기 | 리드 타임: | 배송 1-3 일 |
| 포장: | 표준 내보내기 상자 | ||
| 강조하다: | Komatsu excavator pilot valve,PC1250SP-8 spare parts,excavator valve with warranty |
||

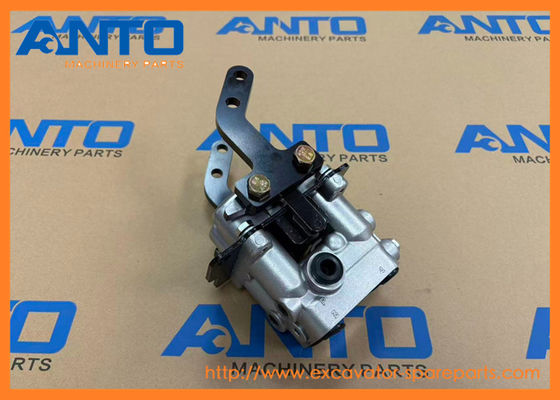

702-16-01682 7021601682 Pilot Valve KOMATSU Excavator Spare Parts Fit For PC1250SP-8
Specifiion
| Category | Floor Frame |
| Name | Pilot Valve |
| Parts No | 702-16-01682 7021601682 |
| Machine Number | PC1100 PC1100SE PC1100SP PC1250 PC1250SE |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
1.Precision Control: Enables "proportional" operation (equipment speed matches lever travel), critical for delicate tasks like grading, trenching, or placing materials.
2.Pressure Amplification: Converts low-pressure pilot input into a controlled signal that operates the high-pressure main control valve, eliminating the need for operators to apply excessive force to levers.
3.Safety Interlock: Works with the excavator’s safety system (e.g., seat switch, hydraulic lock) to cut off pilot pressure if safety conditions are violated (e.g., operator leaves the seat), preventing accidental equipment movement.
4.Load Compensation: Some variants integrate load-sensing features, adjusting pilot pressure based on the weight of the work equipment (e.g.,
reducing speed when lifting a heavy bucket) to avoid instability.
EXCAVATORS PC1100 PC1100SE PC1100SP PC1250 PC1250SE PC1250SP PC750 PC750SE PC800 PC800SE Komatsu
| 702-16-01021 PILOT VALVE |
| PC200, PC220, PC60, PC60L |
| 702-16-01011 PILOT VALVE |
| PC25, PC25R, PC30, PC30R, PC40, PC40R, PC40T, PC45 |
| 702-16-01010 PILOT VALVE |
| PC25, PC25R, PC30, PC30R, PC40, PC40R, PC40T, PC45 |
| 702-16-01020 PILOT VALVE |
| PC200, PC210, PC220, PC240 |
| 702-16-03870 PILOT VALVE |
| D475A |
| 702-16-06260 PILOT VALVE |
| FRONT, WA320, WA320PZ |
| 702-16-01070 PILOT VALVE |
| PC100, PC120, PC130 |
| 702-16-01022 PILOT VALVE |
| PC200, PC220, PC300, PC600 |
| 702-16-01072 PILOT VALVE |
| PC100, PC120, PC130, PC150, PC150HD, PC150NHD, PC180, PC180L, PC20MR, PC20MRX, PC27MRX, PC30MR, PC30MRX, PC35MRX, PC40MR, PC40MRX, PC45MR, PC45MRX, PC58UU, PW170, WA380, WA400, WA430 |
| 702-16-01071 PILOT VALVE |
| PC100, PC120, PC130, PC150 |
| 42N-64-11810 PILOT VALVE |
| WB140, WB140PS, WB150, WB150PS, WB150WSC, WB91R, WB93R, WB97R, WB97S |
| 702-16-01460 PILOT VALVE |
| AIR, FRONT, LW100, LW250, WA120, WA180, WA180PT, WA250, WA250PT, WA380, WA380Z, WA430, WA450, WA470, WA480 |
| Pos. | Part No | Qty | Parts name | Comments |
| 702-16-01682 | [1] | Valve, Pilot Komatsu | 3.53 kg. | |
| ["SN: 30158-UP"] |$0. | ||||
| 3. | 702-16-51140 | [4] | Shim, T=0.30mm Komatsu | 0.001 kg. |
| ["SN: 30158-UP"] | ||||
| 4. | 702-16-55870 | [4] | Spring Komatsu | 0.002 kg. |
| ["SN: 30158-UP"] | ||||
| 5. | 702-16-53140 | [4] | Retainer Komatsu | 0.003 kg. |
| ["SN: 30158-UP"] | ||||
| 6. | 702-16-54420 | [4] | Spring Komatsu | 0.01 kg. |
| ["SN: 30158-UP"] | ||||
| 7. | 702-16-53170 | [4] | Piston Komatsu | 0.043 kg. |
| ["SN: 30158-UP"] | ||||
| 8. | 702-16-51270 | [4] | Seal Komatsu | 0.003 kg. |
| ["SN: 30158-UP"] | ||||
| 9. | 07000-12020 | [4] | O-ring Komatsu | 0.001 kg. |
| ["SN: 30158-UP"] | ||||
| 10. | 702-16-54170 | [4] | Collar Komatsu | 0.005 kg. |
| ["SN: 30158-UP"] | ||||
| 14. | 702-16-54462 | [1] | Plate Komatsu China | |
| ["SN: 30158-UP"] analogs:["7021654461", "7021654460"] | ||||
| 15. | 01010-80855 | [2] | Bolt Komatsu | 0.027 kg. |
| ["SN: 30158-UP"] | ||||
| 16. | 01643-30823 | [2] | Washer Komatsu | 0.004 kg. |
| ["SN: 30158-UP"] analogs:["802070008", "802150008", "0160510818", "0164310823", "802170001", "01643A0823"] | ||||
| 17. | 01010-80816 | [4] | Bolt Komatsu | 0.022 kg. |
| ["SN: 30158-UP"] analogs:["0101050816", "801015084"] | ||||
| 18. | 702-16-54331 | [4] | Washer, T=1.60mm Komatsu | 0.001 kg. |
| ["SN: 30158-UP"] | ||||
| 18. | 702-16-54341 | [4] | Washer, T=1.30mm Komatsu China | |
| ["SN: 30158-UP"] | ||||
| 18. | 702-16-54351 | [4] | Washer, T=1.00mm Komatsu China | |
| ["SN: 30158-UP"] analogs:["890001440"] | ||||
| 22. | 702-16-54506 | [1] | Damper Assembly Komatsu China | |
| ["SN: 30158-UP"] analogs:["7021654700", "7021654500", "890000096", "890001953", "7021654501", "7021654505", "7021654502", "7021654504", "7021654503"] | ||||
| 23. | 01252-60525 | [4] | Bolt Komatsu China | |
| ["SN: 30158-UP"] analogs:["890001515", "890001520", "0125230525"] | ||||
| 24. | 702-16-54511 | [2] | Plate Komatsu China | |
| ["SN: 30158-UP"] analogs:["890001516", "7021654510"] | ||||
| 25. | 04025-00420 | [2] | Pin, Spring Komatsu | 0.001 kg. |
| ["SN: 30158-UP"] | ||||
| 26. | 702-16-54520 | [2] | Lever Komatsu China | |
| ["SN: 30158-UP"] | ||||
| 27. | 01224-40612 | [2] | Screw, Philips Head Komatsu | 0.003 kg. |
| ["SN: 30158-UP"] | ||||
| 30. | 04022-04016 | [2] | Pin, Dowel Komatsu China | |
| ["SN: 30158-UP"] | ||||
| 31. | 04022-04010 | [2] | Pin, Dowel Komatsu China | |
| ["SN: 30158-UP"] |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
