| 범주: | 여행 모터 | 부품 번호: | XKAY-00452 |
|---|---|---|---|
| 제품명: | 로터리 키트 | 기계 번호: | R110-7A R140LC-7 R180LC7A R210LC7 |
| 애플리케이션: | 굴착기 | 리드타임: | 배송 1-3 일 |
| 포장: | 표준 내보내기 상자 | ||
| 강조하다: | HYUNDAI excavator travel motor parts,Rotary kit for R110-7 excavator,R140LC-7 travel motor replacement parts |
||

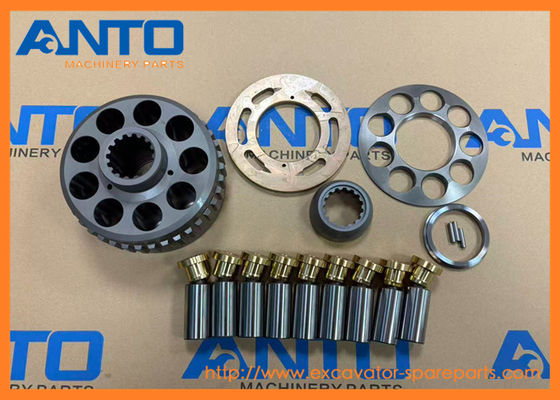

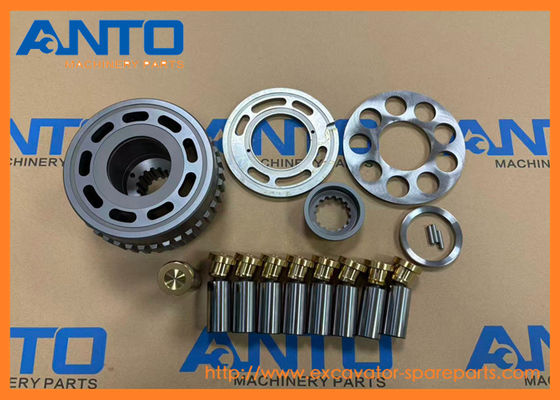

XKAY-00452 Rotary Kit HYUNDAI Excavator Travel Motor Parts Fit For R110-7 R140LC-7 R180LC-7
Specifiion
| Category | Travel Motor Parts |
| Name | Rotary Kit |
| Parts No | XKAY-00452 |
| Machine Number | R110-7A R140LC-7 R180LC7A R210LC7 RC215C7 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
1.Bearings: Reduce friction between rotating shafts in the swing gearbox, ensuring smooth torque transfer and preventing shaft misalignment.
2.Hydraulic Seals/O-Rings: Prevent leakage of hydraulic fluid (from the swing motor) and gear oil (from the gearbox), maintaining system pressure and avoiding contamination.
3.Gear Washers: Distribute load between planetary gears in the swing gearbox, reducing wear and noise during rotation.
4.Dust Cover & Grease: Protect the swing bearing from dirt, debris, and corrosion—extending the bearing’s service life and ensuring consistent swing performance.
7-SERIES CRAWLER EXCAVATOR R110-7 R110-7A R140LC-7 R140LC-7A R180LC7 R180LC7A R210LC7 R210LC7A R210LC7H R210NLC7 RC215C7 RC215C7H Hyundai
| XKAY-00452 ROTARY KIT |
| R110-7, R110-7A, R140LC-7, R140LC-7A, R180LC7, R180LC7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, RC215C7, RC215C7H |
| XKAY-00528 ROTARY KIT |
| R160LC7, R160LC7A, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W7, R170W7A, R170W9, R170W9S, R180LC7, R180LC7A, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R200W7, R210LC7, R210NLC7, RB160LC9S |
| ZGAR-00271 ROTARY GROUP |
| R200W7 |
| ZGAR-00282 ROTARY-HYD SECTION |
| R200W7 |
| XJDD-00109 ROTARY GROUP |
| HW210, R200W7, R200W7A, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S |
| XJDD-00121 ROTARY-HYD SECTION |
| HW210, R200W7, R200W7A, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S |
| XKAY-00963 ROTARY KIT |
| R210LC7, R210LC7A, R210LC7H, R210LC9, R210LC9BC, R210LC9BH, R210NLC7, R210NLC7A, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, RB220LC9S, RB260LC9S,... |
| 39Q6-41260 ROTARY KIT |
| HX220L, HX220NL, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, R300LC9SH, RB220LC9S, RD210-7, RD210-7V, RD220-7, RD220LC9 |
| 39Q7-41130 ROTARY KIT |
| HX235L, HX260L, R235LCR9A, R250LC9, R250LC9A, R260LC9S, RB260LC9S |
| 39Q8-41250 ROTARY KIT |
| HX260L, HX300L, HX330L, HX430L, HX480L, HX520L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, R430LC9, R430LC9A, R43... |
| XKAY-02162 ROTARY KIT |
| R480C9MH, R480LC9, R480LC9A, R480LC9S, R520LC9, R520LC9A, R520LC9S |
| XKAY-01927 ROTARY KIT |
| HX160L, HX180L, R210LC9 |
| XJDD-01125 ROTARY-HYD SECTION |
| R160W9A, R170W9, R180W9A |
| XJDD-01124 ROTARY GROUP |
| R160W9A, R170W9, R180W9A |
| XKAY-01124 ROTARY KIT |
| HX140L, HX160L, R140LC9, R140LC9A, R140LC9S, R160LC7, R160LC7A, R160LC9, R160LC9A, R160LC9S, R180LC9, R180LC9A, R180LC9S, RB160LC9S |
| XKAY-00528 ROTARY KIT |
| R160LC7, R160LC7A, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W7, R170W7A, R170W9, R170W9S, R180LC7, R180LC7A, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R200W7, R210LC7, R210NLC7, RB160LC9S |
| Pos. | Part No | Qty | Parts name | Comments |
| *. | @ | [1] | TRAVEL MOTOR ASSY | SEE 4150 |
| 1 | XKAY-00442 | [1] | CASING-SHAFT | |
| 2 | XKAY-00443 | [10] | PLUG | |
| K3. | XKAY-01091 | [1] | OIL SEAL | |
| *-1. | XKAY-00445 | [1] | SWASH PISTON KIT | |
| N4. | XKAY-00446 | [2] | SWASH PISTON | |
| N5. | XKAY-00447 | [2] | RING-PISTON | |
| 6 | XKAY-00448 | [1] | SHAFT | |
| 7 | XKAY-00449 | [1] | BEARING | |
| 8 | XKAY-00450 | [2] | BALL-STEEL | |
| 9 | JA7B1O01A | [1] | Deleted... | |
| *-2. | XKAY-00452 | [1] | ROTARY KIT | |
| *-2A. | XKAY-00453 | [1] | CYLINDER BLOCK KIT | |
| N10. | XKAY-00824 | [1] | CYLINDER BLOCK | |
| 11 | XKAY-00455 | [1] | SEAT-SPRING | |
| 12 | XKAY-00456 | [1] | SPRING | |
| 13 | XKAY-00457 | [1] | PLATE-END | |
| 14 | XKAY-00458 | [1] | RING-SNAP | |
| 15 | XKAY-00459 | [3] | PIN | |
| 70 | XKAY-00829 | [1] | VALVE PLATE | |
| *-2B. | XKAY-00460 | [1] | RETAINER KIT | |
| 16 | XKAY-00461 | [1] | GUIDE-BALL | |
| 17 | XKAY-00462 | [1] | PLATE-SET | |
| *-2C. | XKAY-00463 | [1] | PISTON KIT | |
| N18. | XKAY-00464 | [9] | PISTON ASSY | |
| 19 | XKAY-00465 | [3] | PLATE-FRICTION | |
| 20 | XKAY-00466 | [3] | PLATE | |
| 21 | XKAY-00467 | [1] | PISTON-PARKING | |
| K22. | XKAY-00468 | [1] | O-RING | |
| K23. | XKAY-00469 | [1] | RING-BACK UP | |
| K24. | XKAY-00470 | [1] | O-RING | |
| K25. | XKAY-00471 | [1] | RING-BACK UP | |
| 26 | XKAY-00472 | [1] | ORIFICE | |
| K27. | XKAY-00473 | [3] | O-RING | |
| K28. | XKAY-00474 | [1] | O-RING | |
| 69 | XKAY-00513 | [1] | BEARING | |
| 72 | XKAY-00515 | [1] | PLUG | |
| 77 | XKAY-01097 | [AR] | SHIM | |
| K. | XKAY-00518 | [1] | SEAL KIT | SEE ILLUST |
| N. | @ | [AR] | NOT INDIVIDUALLY SUPPLIED |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
