제품 상세 정보:
결제 및 배송 조건:
|
| 범주: | 여행 모터 | 부품 번호: | 39Q6-41260 |
|---|---|---|---|
| 제품명: | 로터리 키트 | 기계 번호: | R210LC7A R215LC7 RD210-7 RD210-7V |
| 애플리케이션: | 굴착기 | 리드타임: | 배송 1-3 일 |
| 포장: | 표준 내보내기 상자 | ||
| 강조하다: | HYUNDAI excavator travel motor kit,Rotary kit for R210LC7A excavator,R215LC7 travel motor replacement parts |
||

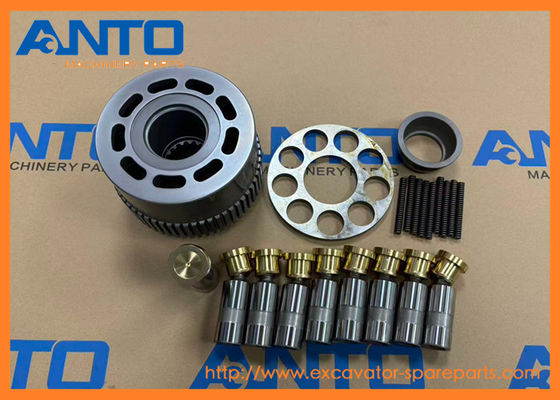

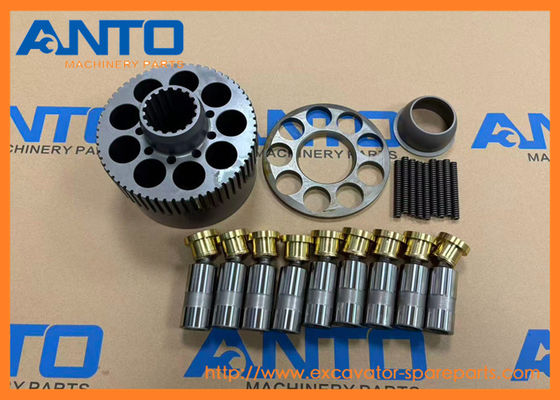

39Q6-41260 Rotary Kit HYUNDAI Excavator Travel Motor Parts Fit For R210LC7A R215LC7
Specifiion
| Category | Travel Motor Parts |
| Name | Rotary Kit |
| Parts No | 39Q6-41260 |
| Machine Number | R210LC7A R215LC7 RD210-7 RD210-7V RD220-7 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
1.Restores Swing Performance: Replaces worn or damaged components to fix issues like slow rotation, jerky movement, or inability to hold position.
2.Prevents Costly Downtime: A complete kit eliminates the need to source individual parts, speeding up repairs and getting equipment back to work faster.
3.Ensures Leak-Free Operation: High-quality seals and rotary joint prevent hydraulic oil leaks, reducing maintenance costs and protecting the environment.
4.Extends System Lifespan: By replacing wear-prone parts proactively, the kit delays major swing system failures, extending the overall service life of the excavator/loader.
7-SERIES CRAWLER EXCAVATOR R210LC7A R215LC7 RD210-7 RD210-7V RD220-7
9-SERIES CRAWLER EXCAVATOR R210LC9 R210LC9BC R210LC9BH R210NLC9 R220LC9A R220NLC9A R235LCR9 R300LC9SH RB220LC9S RD220LC9
F-SERIES CRAWLER EXCAVATOR HX220L HX220NL Hyundai
| XKAY-00452 ROTARY KIT |
| R110-7, R110-7A, R140LC-7, R140LC-7A, R180LC7, R180LC7A, R210LC7, R210LC7A, R210LC7H, R210NLC7, RC215C7, RC215C7H |
| XKAY-00528 ROTARY KIT |
| R160LC7, R160LC7A, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W7, R170W7A, R170W9, R170W9S, R180LC7, R180LC7A, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R200W7, R210LC7, R210NLC7, RB160LC9S |
| ZGAR-00271 ROTARY GROUP |
| R200W7 |
| ZGAR-00282 ROTARY-HYD SECTION |
| R200W7 |
| XJDD-00109 ROTARY GROUP |
| HW210, R200W7, R200W7A, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S |
| XJDD-00121 ROTARY-HYD SECTION |
| HW210, R200W7, R200W7A, R210W-9, R210W9A, R210W9AMH, R210W9MH, R210W9S |
| XKAY-00963 ROTARY KIT |
| R210LC7, R210LC7A, R210LC7H, R210LC9, R210LC9BC, R210LC9BH, R210NLC7, R210NLC7A, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, R250LC7, R250LC7A, R250LC9, R250LC9A, R260LC9S, RB220LC9S, RB260LC9S,... |
| 39Q6-41260 ROTARY KIT |
| HX220L, HX220NL, R210LC7A, R210LC9, R210LC9BC, R210LC9BH, R210NLC9, R215LC7, R220LC9A, R220NLC9A, R235LCR9, R300LC9SH, RB220LC9S, RD210-7, RD210-7V, RD220-7, RD220LC9 |
| 39Q7-41130 ROTARY KIT |
| HX235L, HX260L, R235LCR9A, R250LC9, R250LC9A, R260LC9S, RB260LC9S |
| 39Q8-41250 ROTARY KIT |
| HX260L, HX300L, HX330L, HX430L, HX480L, HX520L, R250LC9, R250LC9A, R260LC9S, R290LC7A, R290LC9, R290LC9MH, R300LC9A, R300LC9S, R300LC9SH, R320LC9, R330LC9A, R330LC9S, R330LC9SH, R430LC9, R430LC9A, R43... |
| XKAY-02162 ROTARY KIT |
| R480C9MH, R480LC9, R480LC9A, R480LC9S, R520LC9, R520LC9A, R520LC9S |
| XKAY-01927 ROTARY KIT |
| HX160L, HX180L, R210LC9 |
| XJDD-01125 ROTARY-HYD SECTION |
| R160W9A, R170W9, R180W9A |
| XJDD-01124 ROTARY GROUP |
| R160W9A, R170W9, R180W9A |
| XKAY-01124 ROTARY KIT |
| HX140L, HX160L, R140LC9, R140LC9A, R140LC9S, R160LC7, R160LC7A, R160LC9, R160LC9A, R160LC9S, R180LC9, R180LC9A, R180LC9S, RB160LC9S |
| XKAY-00528 ROTARY KIT |
| R160LC7, R160LC7A, R160LC9, R160LC9A, R160LC9S, R160W9A, R170W7, R170W7A, R170W9, R170W9S, R180LC7, R180LC7A, R180LC9, R180LC9A, R180LC9S, R180W9A, R180W9S, R200W7, R210LC7, R210NLC7, RB160LC9S |
| Pos. | Part No | Qty | Parts name | Comments |
| *. | 39K6-40100 | [1] | TRAVEL MOTOR ASSY | TYPE 1 |
| *. | 39K6-40101 | [1] | TRAVEL MOTOR ASSY | TYPE 1 |
| *. | 38K6-40100 | [1] | TRAVEL MOTOR ASSY | TYPE 2 |
| *. | 38K6-40101 | [1] | TRAVEL MOTOR ASSY | TYPE 2 |
| *-1. | 39K6-41100 | [1] | TRAVEL MOTOR UNIT | TYPE 1 |
| *-1. | 38K6-41100 | [1] | TRAVEL MOTOR UNIT | TYPE 2 |
| K2. | 39Q6-41120 | [8] | PLUG | |
| K29. | 39Q6-41420 | [1] | PIN-PARALLEL | |
| 30 | 39K6-41430 | [20] | SPRING | |
| K32. | S471-600404 | [1] | PIN-SPRING | |
| K33. | 39Q6-41450 | [2] | PIN-PARALLEL | |
| K34. | 39Q6-41462 | [1] | COVER-REAR | OLD |
| K34. | 39Q6-41462AS | [1] | COVER-REAR | NEW |
| K35. | 39Q7-41490 | [1] | MAIN SPOOL ASSY | |
| K36. | 39Q6-41530 | [2] | COVER | |
| K37. | 39Q6-41540 | [2] | SPRING | |
| K38. | 39Q6-41550 | [2] | RESTRICTOR | |
| K39. | S109-120356 | [8] | BOLT-SOCKET | |
| NK40. | 39Q6-41560 | [2] | O-RING | |
| K41. | 39Q6-41570 | [2] | SEAT-SPRING | |
| K42. | 39Q7-41580 | [2] | RELIEF VALVE ASSY | |
| 42-3. | S631-12S004 | [1] | O-RING | |
| 42-8. | S631-021004 | [1] | O-RING | |
| 42-9. | S641-021001 | [2] | RING-BACK UP | |
| 42-12. | S631-015004 | [1] | O-RING | |
| 42-13. | S641-015001 | [2] | RING-BACK UP | |
| 42-16. | 39Q6-41890 | [1] | O-RING | |
| K43. | 39Q6-41670 | [2] | SPRING | |
| K44. | 39Q6-41680 | [2] | PLUG | |
| NK45. | S631-009004 | [2] | O-RING | |
| NK46. | S631-011004 | [4] | O-RING | |
| K47. | 39Q6-41691 | [1] | SPOOL | |
| K48. | 39Q6-41700 | [1] | PLUG | |
| K49. | 39Q6-41710 | [1] | SEAT-SPRING | |
| K50. | 39Q6-41720 | [1] | PIN-PARALLEL | |
| K51. | 39Q6-41730 | [1] | SPRING | |
| K52. | 39Q6-41740 | [1] | CONNECTOR | |
| NK53. | S631-014004 | [2] | O-RING | |
| 54 | S109-180506 | [4] | BOLT-SOCKET | |
| 55 | S109-180406 | [4] | BOLT-SOCKET | |
| K56. | 39Q6-41760 | [3] | VALVE-CHECK | |
| K57. | 39Q6-41770 | [3] | SPRING | |
| K58. | 39Q6-41780 | [4] | PLUG | |
| NK59. | S631-008004 | [6] | O-RING | |
| K60. | 39Q6-41750 | [2] | PLUG | |
| K61. | 39Q6-41870 | [1] | RESTRICTOR | |
| K62. | 39Q6-41860 | [1] | RESTRICTOR | |
| KN63. | 39K6-41790 | [1] | NAME PLATE | |
| K64. | 39Q6-41800 | [2] | RIVET | |
| *-2. | 39Q6-42100 | [1] | TRAVEL REDUCTION GEAR | SEE 4132 |
| *-2. | 39Q6-42101 | [1] | TRAVEL REDUCTION GEAR | SEE 4132 |
| K. | 39Q6-41150 | [1] | PISTON KIT | SEE ILLUST |
| K. | 39Q6-41260 | [1] | ROTARY KIT | SEE ILLUST |
| K. | 39Q6-41270 | [1] | CYLINDER BLOCK KIT | SEE ILLUST |
| K. | 39Q6-41300 | [1] | RETAINER KIT | SEE ILLUST |
| K. | 39Q6-41810 | [1] | O-RING KIT | SEE ILLUST |
| K. | 39Q6-41820 | [1] | D-RING KIT | SEE ILLUST |
| K. | 38K6-41462K | [1] | REAR COVER KIT | SEE ILLUST |
| N. | @ | [AR] | NOT SUPPLIED PARTS |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
| Travel Motor |
