| 범주: | 냉각수 시스템 | 부품 번호: | XJAU-00893 |
|---|---|---|---|
| 제품명: | 워터 펌프 | 기계 번호: | R55-9 R60CR-9 R80CR-9 |
| 애플리케이션: | 굴착기 | 리드타임: | 배송 1-3 일 |
| 포장: | 표준 수출 상자 | ||
| 강조하다: | HYUNDAI excavator water pump,Excavator cooling system parts,R55W-9 compatible water pump |
||

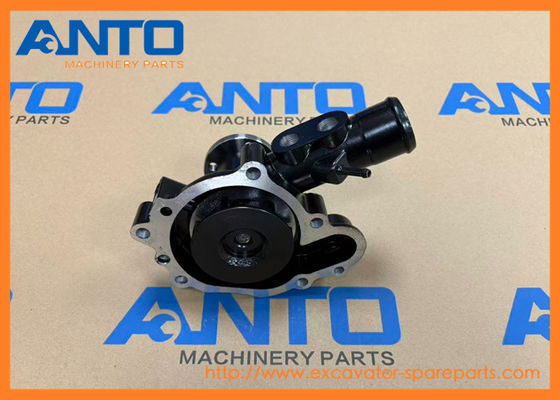

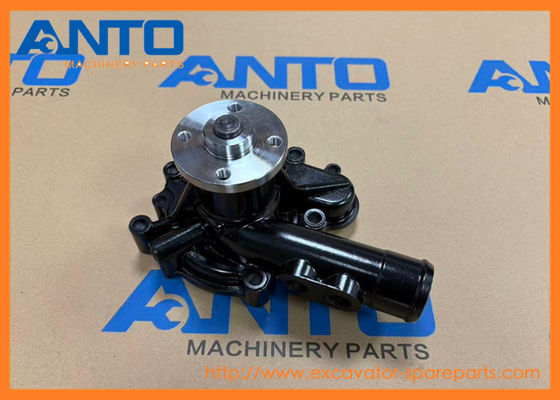

XJAU-00893 Water Pump HYUNDAI Excavator Cooling System Parts Fit For R55W-9 R60CR-9
Specifiion
| Category | Cooling Water System |
| Name | Water Pump |
| Parts No | XJAU-00893 |
| Machine Number | R55-9 R60CR-9 R80CR-9 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
1.Temperature Regulation: Prevents engine overheating (a leading cause of seizure) during long work hours or hot-climate operations.
2.Component Protection: Cools critical engine parts to avoid warping, gasket failure, or metal fatigue caused by extreme heat.
3.Efficiency Preservation: Maintains optimal engine temperature to preserve fuel efficiency and power output—overheated engines lose torque and burn more fuel.
4.Cold-Start Support: Works with the thermostat to circulate coolant slowly during startup, helping the engine reach operating temperature faster and reducing premature wear.
7 SERIES WHEEL EXCAVATOR R55W7A
7-SERIES CRAWLER EXCAVATOR R55-7A R80-7A
9-SERIES CRAWLER EXCAVATOR R55-9 R60CR-9 R80CR-9
9-SERIES WHEEL EXCAVATOR R55W-9 Hyundai
| XJAU-00540 PUMP ASSY-FEED |
| R35-7Z, R35Z-7A, R35Z9, R55-7, R55-7A, R55-9, R55-9S, R55W-9, R55W-9S, R55W7, R55W7A, R60CR-9, R80-7, R80-7A, R80CR-9 |
| XJAU-00233 PUMP-FUEL |
| R35-7Z, R35Z-7A, R35Z9, R35Z9A, R55-7, R55-7A, R55-9, R55-9A, R55-9S, R55W-9, R55W-9A, R55W-9S, R55W7, R55W7A, R60CR-9, R60CR-9A, R80-7A, R80CR-9, R80CR-9A, RC60-7 |
| XJAU-00022 PUMP ASSY-LUB OIL |
| 22D-9E, R55-7, R55-7A, R55-9, R55-9A, R55-9S, R55W-9, R55W-9A, R55W-9S, R55W7, R55W7A, R60CR-9, R60CR-9A, R80-7, R80-7A, R80CR-9, R80CR-9A, RC60-7 |
| XJDD-00008 PUMP-GEAR |
| R80-7, R80-7A, RD80-7 |
| 21M8-51060 PUMP & MOTOR ASSY |
| R80-7A |
| 21ML-50060 PUMP & MOTOR ASSY |
| R60CR-9, R80CR-9 |
| 21ML-50061 PUMP & MOTOR ASSY |
| R60CR-9, R60CR-9A, R80CR-9A |
| XJDD-01181 PUMP-PISTON |
| R80CR-9, R80CR-9A |
| XKBN-02094 PUMP-GREASE, EP-1 |
| BREAKERS, HW140, HW210, HX140L, HX220L, HX220NL, HX235L, HX260L, HX300L, HX330L, HX380L, HX430L, HX480L, HX520L, R140LC9, R140LC9A, R140LC9S, R140W9, R140W9A, R140W9S, R145CR9, R145CR9A, R16-9, R16-9C... |
| XJBN-01705 PUMP-GEAR |
| R80-7, R80-7A, RD80-7 |
| XJDD-01372 PUMP HOUSING |
| R80CR-9, R80CR-9A |
| XJAU-00161 PUMP ASSY-WATER |
| R55-7, R55-9S, R55W-9S, R55W7, R80-7, RC60-7 |
| XJAU-00022 PUMP ASSY-LUB OIL |
| 22D-9E, R55-7, R55-7A, R55-9, R55-9A, R55-9S, R55W-9, R55W-9A, R55W-9S, R55W7, R55W7A, R60CR-9, R60CR-9A, R80-7, R80-7A, R80CR-9, R80CR-9A, RC60-7 |
| 31QB-30120 PUMP-REMOTE FAN DRIVE |
| R480LC9, R520LC9 |
| 31NB-98110 PUMP |
| R1200-9, R450LC7, R450LC7A, R500LC7, R500LC7A, RD510LC-7 |
| XJDH-03717 PUMP |
| R36N-7 |
| 31QA-10010 PUMP ASSY |
| R360LC9, R380LC9A, R380LC9DM, R380LC9MH, R430LC9 |
| 3940052 PUMP-WATER |
| R360LC7 |
| XJAU-01039 PUMP ASSY-LUB OIL |
| R35Z-7A, R35Z9 |
| XJAU-00233 PUMP-FUEL |
| R35-7Z, R35Z-7A, R35Z9, R35Z9A, R55-7, R55-7A, R55-9, R55-9A, R55-9S, R55W-9, R55W-9A, R55W-9S, R55W7, R55W7A, R60CR-9, R60CR-9A, R80-7A, R80CR-9, R80CR-9A, RC60-7 |
| XJAU-00540 PUMP ASSY-FEED |
| R35-7Z, R35Z-7A, R35Z9, R55-7, R55-7A, R55-9, R55-9S, R55W-9, R55W-9S, R55W7, R55W7A, R60CR-9, R80-7, R80-7A, R80CR-9 |
| XJAU-00790 PUMP ASSY-FUEL INJECT |
| R35-7Z |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | XJAU-00893 | [1] | PUMP ASSY-WATER | |
| 11 | XJAU-00162 | [1] | GASKET | |
| 12 | XJAU-00163 | [2] | BOLT-PLATED | |
| 13 | XJAU-00101 | [5] | BOLT-PLATED | |
| 14 | XJAU-01072 | [1] | PULLEY-FAN | |
| 15 | XJAU-00894 | [1] | BELT-FAN | |
| 16 | XJAU-01079 | [4] | BOLT | |
| 17 | XJAU-00895 | [1] | CASE ASSY-THERMOSTAT | |
| 18 | XJAU-00896 | [1] | THERMOMETER | |
| 20 | XJAU-00169 | [1] | COVER-THERMOSTAT | |
| 21 | XJAU-00170 | [1] | GASKET-THERMOSTAT | |
| 23 | XJAU-00171 | [1] | GASKET-THERMOSTAT | |
| 24 | XJAU-00173 | [1] | THERMOSTAT | |
| 26 | XJAU-00414 | [1] | WASHER-SEAL, 12 | |
| 27 | XJAU-00177 | [2] | PLUG | |
| 28 | XJAU-00472 | [4] | BOLT | |
| 29 | XJAU-00181 | [1] | GASKET-CASE | |
| 30 | XJAU-00176 | [1] | GASKET-ROUND, 8 | |
| 31 | XJAU-00046 | [1] | BOLT-PLATED | |
| 32 | XJAU-00080 | [3] | BOLT-PLATED | |
| 33 | XJAU-00180 | [1] | PLUG-DRAIN | |
| 34 | XJAU-00182 | [2] | PLUG | |
| 35 | XJAU-00183 | [2] | GASKET-16 | |
| 36 | XJAU-00899 | [1] | PIPE ASSY-WATER A | |
| 39 | XJAU-00900 | [2] | CLAMP | |
| 40 | XJAU-00901 | [1] | PIPE ASSY-WATER B | |
| 43 | XJAU-00900 | [2] | CLAMP |
