| 엔진 번호: | C-10 C-12 | 부품 번호: | 109-5308 1095308 |
|---|---|---|---|
| 제품명: | 틈 메우는 물건 | 기계 번호: | 345B 345B II 345B II MH 345B L 365B 365B L |
| 어플리케이션: | 굴삭기, 트럭 엔진 | 리드타임: | 배송 1-3 일 |
| 포장: | 표준 수출 상자 | ||
| 강조하다: | C-10 C-12 excavator oil pan gasket,345B 365B oil pan gasket replacement,excavator spare parts oil pan gasket |
||

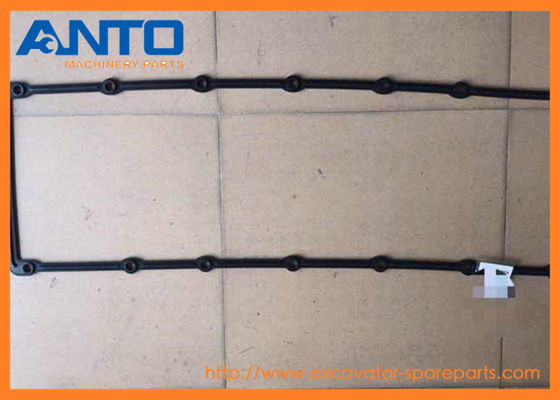

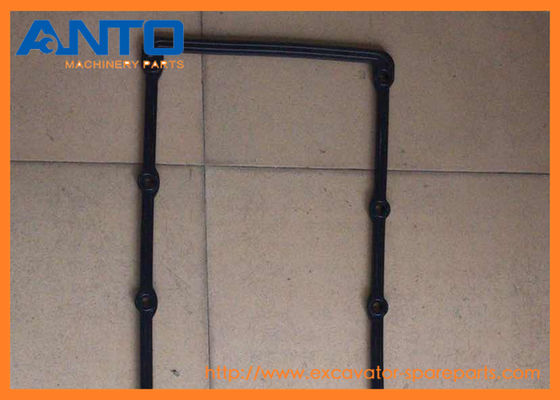

109-5308 1095308 Oil Pan Gasket Excavator Spare Parts Fitting For C-10 C-12 345B 365B
Specifiion
| Category | Oil Pan |
| Name | Gasket |
| Parts No | 109-5308 1095308 |
| Machine Number | 345B 345B II 345B II MH 345B L 365B 365B L |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
1.Oil Retention: Prevents engine oil leakage from the oil pan, ensuring the lubrication system maintains proper oil levels. Low oil levels cause insufficient lubrication, leading to metal-to-metal contact and catastrophic engine damage.
2.Contamination Prevention: Blocks external debris from entering the oil pan, keeping engine oil clean and extending the life of the oil filter and internal engine components.
3.Crankcase Sealing: Seals the crankcase (the oil pan forms the bottom of the crankcase), controlling crankcase pressure (generated by combustion gases leaking past piston rings) and preventing oil mist from escaping into the atmosphere.
ARTICULATED TRUCK 725 730
CHALLENGER 65E 75 75C 75D 75E 85C 85D 85E 95E MTC835
COMBINE 480
EXCAVATOR 345B 345B II 345B II MH 345B L 365B 365B L
GEN SET ENGINE C-12
INDUSTRIAL ENGINE 3176B 3176C 3196 C-10 C-12
LANDFILL COMPACTOR 816F
LOAD HAUL DUMP R1600 R1600G R1700 II R1700G
MARINE ENGINE 3176B 3176C 3196 C-12 C12
MOTOR GRADER 140H 143H 14H 160H 163H 16H
PETROLEUM ENGINE C13
PIPELAYER 572R II
PUMPER CPT372 SBF214 SUF557
SOIL COMPACTOR 815F
TRACK FELLER BUNCHER TK1051
TRACK-TYPE TRACTOR D7R II D8N
TRUCK ENGINE 3176 3176B C-10 C-12 C13
WHEEL DOZER 814F
WHEEL LOADER 966G II 972G II
WHEELED EXCAVATOR W345B II C.ater.pillar.
| 8D9974 GASKET |
| 120G, 120H, 120H ES, 120H NA, 12G, 12H, 12H ES, 12H NA, 130G, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 143H, 14G, 14H, 14H NA, 160G, 160H, 160H ES, 160H NA, 163H NA, 16G, 16H, 16H NA |
| 3P0884 GASKET-TRANSMISSION PUMP |
| 120G, 12G, 130G, 140G, 14G, 14H, 14H NA, 160G, 16G, 16H, 16H NA |
| 2B3147 GASKET |
| 120, 120B, 120G, 120H, 120H ES, 120H NA, 120K, 120K 2, 12E, 12F, 12G, 12H, 12H ES, 12H NA, 12K, 130G, 135H, 135H NA, 140B, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 143H, 14E, 160G, 160H, 160H ES, 1... |
| 2G9791 GASKET |
| 120G, 120H, 120H ES, 120H NA, 120K, 120K 2, 12G, 12H, 12H ES, 12H NA, 12K, 130G, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 143H, 160G, 160H, 160H ES, 160H NA, 160K, 163H, 163H NA, 16G |
| 3D2981 GASKET |
| 120, 120B, 12E, 12F, 12G, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 130G, 140B, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 140M 3, 140M 3 AWD, 143H, 14E, 160G, 160H, 160H ... |
| 6G5539 GASKET |
| 120G, 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 12G, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 130G, 135H, 135H NA, 140G, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 140M 2, 14... |
| 3P3252 GASKET |
| 14G, 14H, 14H NA, 16G, 16H, 16H NA |
| 6T1235 GASKET |
| 14G, 14H, 14H NA, 16G, 16H, 16H NA |
| 2G9793 GASKET |
| 14G, 14H, 14H NA, 14M |
| 2G9794 GASKET |
| 14G, 14H, 14H NA, 16G, 16H, 16H NA |
| 2G9796 GASKET |
| 16G, 16H, 16H NA, 16M |
| 1153688 GASKET |
| 330, 330 L, 330B, 330B L, 345B, 345B L, W330B |
| 1512909 GASKET |
| 3176B, 75C, 85C, R1700 II |
| 1011287 GASKET |
| 3176, 3176B, 75, 75C, 85C |
| 9Y3590 GASKET |
| 3176, 3176B, 75, 75C, 85C, R1700 II |
| 9Y3593 GASKET |
| 3176, 3176B, 75, 75C, 85C, R1700 II |
| 1193790 GASKET AS-CYLINDER HEAD |
| 3176B, 75C, 85C |
| 9Y1758 GASKET |
| 140H, 143H, 14H, 14M, 160H, 163H, 16H, 16M, 3176, 3176B, 3176C, 3196, 345B, 345B II, 345B II MH, 345B L, 345C, 345C L, 345C MH, 345D, 345D L, 345D L VG, 349D, 349D L, 349E, 349E L, 349E L HVG |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 193-8298 | [14] | SPACER | |
| 2 | 109-5308 | [1] | GASKET-OIL PAN | |
| 3 | 126-0166 | [1] | PAN-OIL | |
| 4 | 6N-8863 | [14] | WASHER (10.2X32X2.5-MM THK) | |
| 5 | 6V-4249 M | [14] | BOLT (M10X1.5X50-MM) | |
| 6 | 8T-6761 | [2] | PLUG-PIPE (1-11-1/2 NPT THD) | |
| 7 | 206-7331 | [2] | PLUG-DRAIN (MAGNETIC)(ENGINE OIL) | |
| 8 | 5P-8210 | [2] | SEAL-O-RING | |
| 9 | 126-0167 | [1] | BELL AS | |
| 10 | 6V-8197 M | [4] | BOLT (M12X1.75X40-MM) | |
| 11 | 5P-8245 | [4] | WASHER-HARD (13.5X25.5X3-MM THK) | |
| 12 | 1V-8230 | [4] | SPACER (0.531X1X0.57-IN THK) | |
| 13 | 5P-8211 | [1] | SEAL-O-RING | |
| 14 | 3E-8016 M | [2] | BOLT-SELF-LOCKING (M8X1.25X25-MM) | |
| 15 | 9M-1974 | [2] | WASHER-HARD (8.8X16X2-MM THK) | |
| M | METRIC PART |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
