제품 상세 정보:
결제 및 배송 조건:
|
| 범주: | JCB 예비 부품 | 부품 번호: | 1604/2051 |
|---|---|---|---|
| 제품명: | 어댑터 | 기계 번호: | 3CX 4CX JS130 JS145 |
| 어플리케이션: | 굴착기 | 리드타임: | 배송 1-3 일 |
| 포장: | 표준 수출 상자 | ||
| 강조하다: | JCB excavator hydraulic adaptor,3CX 4CX spare parts fitting,JS130 JS145 hydraulic fitting |
||

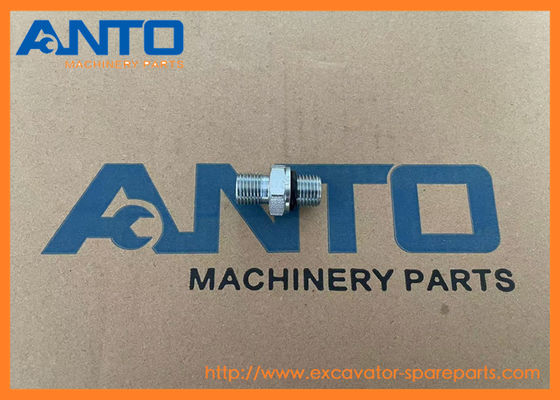

1604/2051 Hydraulic Adaptor JCB Excavator Spare Parts Fitting For 3CX 4CX JS130 JS145
Specifiion
| Category | JCB Spare Parts |
| Name | Adaptor |
| Parts No | 1604/2051 |
| Machine Number | 3CX 4CX JS130 JS145 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
| Working Principle | 1. Acts as a "bridge" between two incompatible components (e.g., a hose with BSPP thread and a valve with NPT thread) |
| 2. Threaded/flanged ends mate securely with the respective components, creating a sealed pathway for fluids or a stable mechanical joint | |
| 3. Maintains structural integrity under high pressure and vibration to prevent leaks or component separation | |
| Core Functions | 1.Resolve component incompatibility (thread size, port type, or connection style) in JCB equipment systems |
| 2.Ensure leak-free fluid transfer in hydraulic, fuel, or engine circuits | |
| 3.Provide stable mechanical connection for sensors, gauges, or auxiliary parts | |
| 4.Simplify maintenance by enabling easy replacement of mismatched components |
LOADERS 3CX 4CX JS130 JS145 JCB
| 458/20611 Adaptor hose |
| JCB |
| 334/Y9097 Adaptor Scavenge |
| JCB |
| 816/60068 Adaptor |
| JCB |
| 816/90006 Adaptor filtered M/M |
| JCB |
| 816/90618 Adaptor elbow 1/4 |
| JCB |
| 816/13369 Adaptor SAE/SAE |
| JCB |
| 1620/2058 Adaptor 3/4BSP x 7/8SAE M/M |
| JCB |
| 816/15139 Adaptor M10 x 1/4"BSP |
| JCB |
| 816/25056 Adaptor |
| JCB |
| 816/90040 Adaptor Tee |
| JCB |
| 1620/2055 Adaptor 39.5mm Long. M/M 1/2"BSP x 7/8"SAE |
| JCB |
| 45/908000 Adaptor pressure test point 9/16-18UNF Male |
| JCB |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 331/15141 | [1] | Bracket Mounting Engine control | |
| 1 | 335/04856 | [1] | Bracket throttle control | |
| 2 | 1316/0508Z | [4] | Screw M12 x 30mm | |
| 3 | JHP0042 | [4] | Washer M12 | |
| 4 | 1391/3410Z | [1] | Capscrew | |
| 5 | 1371/0301Z | [1] | Nut High Strength, M10 | |
| 6 | 331/14519 | [1] | Actuator Cylinder slave | |
| 7 | 1316/0203Z | [2] | Screw | |
| 9-3. | KHH0156 | [1] | Spring assembly | |
| 9-1. | KHH0157 | [1] | Coupling cylinder throttle | |
| 9-2. | JHH0017 | [1] | Bolt | |
| 9-3. | KHH0159 | [1] | Spring compression | |
| 9-4. | KHH0130 | [2] | Collar special | |
| 9-5. | 380A0220Z | [1] | Ring snap | |
| 9-6. | 1420/0006Z | [1] | Washer (M6) | |
| 10 | JHH0161 | [1] | Rod threaded | |
| 14 | JHH0113 | [1] | Rod end | |
| 15 | 1371/0201Z | [1] | Nut | |
| 16 | 1425/0007Z | [1] | Washer spring M8 | |
| 17 | 331/15144 | [1] | Lever Engine control | |
| 18 | 331/15142 | [1] | Shaft Engine control | |
| 18 | 331/28967 | [1] | Shaft engine control | |
| 18 | M.S.S | [1] | Multi Supersession | NLA use items 18A to 18H |
| 18 | 'See Remark' | see TI 11/120 for fitting instructions | ||
| 18A. | 716/30180 | [1] | Relay potentiometer | |
| 18B. | 331/34610 | [1] | Sleeve adaptor | |
| 18C. | 831/10237 | [1] | Bush Flanged | |
| 18D. | 1391/9402 | [2] | Capscrew | |
| 18E. | 721/11283 | [1] | Harness link throttle sensor | |
| 18F. | 331/34297 | [1] | Cover throttle control | |
| 18G. | 1316/0408Z | [10] | Screw M10x30 | |
| 18H. | 231/79901 | [1] | Spacer | |
| 19 | 831/10210 | [1] | Bush Bearing | |
| 20 | 1390/0301Z | [2] | Screw grub | |
| 21 | 716/30069 | [1] | Sensor Throttle | |
| 21 | 716/92300 | [1] | Relay potentiometer | |
| 22 | 1315/9409Z | [2] | Screw set | |
| 23 | 1425/0004Z | [2] | Washer spring | |
| 24 | 928/60027 | [1] | Valve Solenoid Proportional | |
| 25 | 1391/3212Z | [2] | Capscrew M6 X 50 | |
| 27 | KMJ0707 | [2] | Adapter | |
| 28 | 1406/0011 | [4] | Washer Bonded (1/4") | |
| 29 | 830/10516 | [1] | Connector Pipe | |
| 29 | 627/10016 | [1] | Hose 1/4"STx135x480mm | |
| 30 | 1604/0002 | [2] | Adapter | |
| 30 | 1604/2051 | [2] | Adaptor | |
| 31 | JNJ0210 | [1] | Hose nylon, white/yellow 1/4" 180/90 1650mm | |
| 32 | KRJ3895 | [1] | Hose 1/4"BSP ST-90 x 350mm | |
| 33 | 716/30091 | [1] | Solenoid Engine stop | |
| 34 | KHR0736 | [2] | Screw pan head | |
| 35 | 910/60057 | [1] | Cable Engine stop | |
| 35 | 910/60140 | [1] | Cable engine stop solenoid | |
| 36 | 910/60084 | [1] | Cable engine control | |
| 37 | JHH0112 | [2] | Rod end | |
| 38 | 1371/0101Z | [2] | Nut high strength | |
| 39 | 1425/0006Z | [2] | Washer Spring (M6) | |
| 40 | KAR0016 | [2] | Tie Cable | |
| 40 | 826/01144 | [2] | Tie Cable 200mm | |
| 41 | 331/24106 | [1] | Cover engine control | |
| 42 | 1316/0205Z | [2] | Screw | |
| 43 | 02/800390 | [1] | Bracket |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
