제품 상세 정보:
결제 및 배송 조건:
|
| 범주: | 연료공급배관, 연료배관 | 부품 번호: | 20Y-04-41414 20Y0441414 |
|---|---|---|---|
| 제품명: | 호스 | 기계 번호: | PC200 PC210 PC220 PC230NHD PC240 |
| 어플리케이션: | 굴착기 | 리드타임: | 배송 1-3 일 |
| 포장: | 표준 수출 상자 | ||
| 강조하다: | Komatsu excavator hose PC200,PC210 excavator spare parts hose,PC220 hydraulic hose with warranty |
||

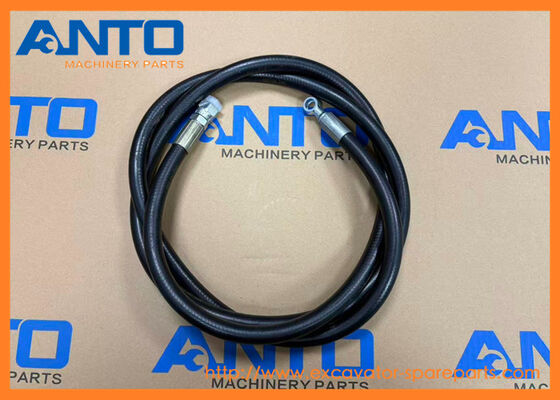

20Y-04-41414 20Y0441414 Hose KOMATSU Excavator Spare Parts For PC200 PC210 PC220
Specifiion
| Category | Fuel Supply Piping, Fuel Piping |
| Name | Hose |
| Parts No | 20Y-04-41414 20Y0441414 |
| Machine Number | PC200 PC210 PC220 PC230NHD PC240 PC270 PC290 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
| Working Principle | 1. Pressurized hydraulic oil (from the main pump) flows into the inner tube of the hose at up to 35 MPa |
| 2. The steel wire braid reinforcement counteracts internal pressure, preventing the hose from expanding or bursting | |
| 3. The flexible design allows the hose to bend and flex as the excavator’s boom/arm moves, maintaining unobstructed oil flow | |
| 4. The CR outer cover shields the inner tube/braid from abrasion, debris, and environmental damage | |
| 5. Crimped fittings create a permanent, leak-proof connection to mating components (valves/cylinders), ensuring system pressure retention | |
| Core Functions | 1. High-Pressure Oil Conduction: Delivers pressurized hydraulic oil to power the excavator’s boom, arm, and bucket cylinders – enabling heavy lifting/digging operations |
| 2. Leak Prevention: Factory-sealed fittings and robust inner tube eliminate hydraulic oil loss, avoiding pressure drops and safety hazards (slippery job site surfaces) | |
| 3. Dynamic Flexibility: Accommodates movement of the excavator’s working equipment without kinking or restricting oil flow | |
| 4. Component Protection: Outer cover blocks debris from damaging the reinforcement, extending hose life and reducing risk of hydraulic system contamination |
EXCAVATORS PC200 PC200LL PC210 PC220 PC230NHD PC240 PC270 PC290
MOBILE CRUSHERS AND RECYCLERS BR380JG Komatsu
| 02762-00325 HOSE |
| AIR, BZ210, PC200, PC200LL, PC210, PC220, PC220LL, PC230NHD, PC240, PC270, PC290, PC300, PC300HD, PC340, PC350, PC360, PC400, PC450, PRESSURE, RAIN |
| 02762-00335 HOSE |
| AIR, BZ210, D155A, D65EX, D85EX, D85PX, DRAWBAR,, PC200, PC220, PC240, PC270, PC290, PC300, PC350, PRESSURE, RAIN, WA1200 |
| 20Y-04-41281 HOSE |
| HB205, HB215, PC200, PC200LL, PC220, PC220LL, PC240, PC270, PC290 |
| 09483-10311 HOSE |
| D155A, HM350, HM400, PC200, PC220, PC270, PC360, PC390, PC390LL, PC600, WA600 |
| 20Y-01-41320 HOSE |
| PC200, PC220, PC270 |
| 20Y-01-41110 HOSE |
| PC200, PC200LL, PC210, PC220, PC220LL, PC230NHD, PC240, PC270, PC290 |
| 07084-01AA9 HOSE |
| BR550JG, HB205, HB215, PC200, PC220, PC240, PC270, PC290 |
| 20Y-62-51321 HOSE |
| PC200, PC210, PC220, PC230NHD, PC240, PC270, PC290 |
| 20Y-64-84130 HOSE |
| PC200 |
| 20Y-62-51240 HOSE |
| PC200, PC200LL, PC220, PC240, PC270, PC290 |
| 20Y-03-41880 HOSE |
| GD755, PC200, PC200LL, PC210, PC220, PC240, PC270, PC290 |
| 20Y-04-41373 HOSE |
| PC200, PC200LL, PC210, PC220, PC220LL, PC230NHD, PC240, PC270, PC290 |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 02762-00335 | [1] | Hose Komatsu | 0.9 kg. |
| ["SN: 30117-UP"] | ||||
| 2 | 02762-00325 | [1] | Hose Komatsu | 0.68 kg. |
| ["SN: 30117-UP"] | ||||
| 3 | 02896-11009 | [2] | O-ring Komatsu China | 0.01 kg. |
| ["SN: 30117-UP"] analogs:["R0289611009", "0286911009"] | ||||
| 4 | 07206-30812 | [2] | Bolt, Joint Komatsu | 0.035 kg. |
| ["SN: 30117-UP"] | ||||
| 5 | 07005-01212 | [4] | Seal, Washer Komatsu China | 0.01 kg. |
| ["SN: 30117-UP"] analogs:["6731715870", "R0700501212"] | ||||
| 6 | 20Y-04-41414 | [1] | Hose Komatsu | 0.58 kg. |
| ["SN: 30117-UP"] | ||||
| 7 | 20Y-04-41373 | [1] | Hose Komatsu | 0.44 kg. |
| ["SN: 30117-UP"] | ||||
| 8 | 08034-20519 | [1] | Band Komatsu | 0.001 kg. |
| ["SN: 30117-UP"] analogs:["2260611130", "885180010"] | ||||
| 9 | 20Y-04-41321 | [1] | Bracket Komatsu China | |
| ["SN: 30117-UP"] | ||||
| 10 | 04434-51912 | [1] | Clip Komatsu | 0.02 kg. |
| ["SN: 30117-UP"] | ||||
| 11 | 01010-81225 | [3] | Bolt Komatsu | 0.074 kg. |
| ["SN: 30117-UP"] analogs:["01010B1225", "0101051225", "0101051222", "R0101081225"] | ||||
| 12 | 01643-31232 | [3] | Washer Komatsu | 0.027 kg. |
| ["SN: 30117-UP"] analogs:["0164371232", "0164381232", "802170003", "R0164331232", "0614331232"] | ||||
| 13 | 04435-51812 | [1] | Clip Komatsu | 0.056 kg. |
| ["SN: 30117-UP"] | ||||
| 14 | 154-979-1480 | [1] | Collar Komatsu China | |
| ["SN: 30117-UP"] | ||||
| 15 | 01010-81275 | [1] | Bolt Komatsu | 0.082 kg. |
| ["SN: 30117-UP"] analogs:["0101051275"] | ||||
| 17 | 195-33-11220 | [1] | Spacer Komatsu | 0.073 kg. |
| ["SN: 30117-UP"] | ||||
| 18 | 01010-81250 | [1] | Bolt Komatsu | 0.061 kg. |
| ["SN: 30117-UP"] analogs:["0101051250"] | ||||
| 26 | 20Y-04-41421 | [1] | Plate Komatsu China | |
| ["SN: 30117-UP"] | ||||
| 29 | 01010-81235 | [1] | Bolt Komatsu | 0.048 kg. |
| ["SN: 30117-UP"] analogs:["0101051235", "01010E1235", "801015136"] | ||||
| 31 | 198-06-53560 | [1] | Cushion Komatsu China | |
| ["SN: 30117-UP"] | ||||
| 32 | 04434-52512 | [1] | Clip Komatsu | 0.034 kg. |
| ["SN: 30117-UP"] | ||||
| 33 | 04434-51812 | [1] | Clip Komatsu | 0.019 kg. |
| ["SN: 30117-UP"] | ||||
| 34 | 21T-38-71260 | [1] | Bracket Komatsu China | |
| ["SN: 30117-UP"] analogs:["21T3871260NK"] |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
