제품 상세 정보:
결제 및 배송 조건:
|
| 범주: | 리어 액슬, 허브 감속 부품 | 부품 번호: | 12743123 11704999 14560269 14560273 |
|---|---|---|---|
| 제품명: | O- 링 | 기계 번호: | EW140E EW145B EW160C EW180E EW205D |
| 어플리케이션: | 굴착기 | 리드타임: | 배송 1-3 일 |
| 포장: | 표준 수출 상자 | ||
| 강조하다: | Excavator O-Ring spare parts,EW140E O-Ring fitting,EW145B excavator replacement parts |
||

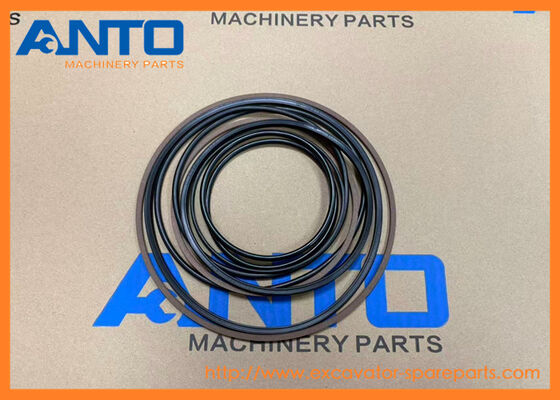

12743123 11704999 14560269 14560273 O-Ring Excavator Spare Parts Fitting For EW140E EW145B
Specifiion
| Category | Rear Axle, Hub Reduction Parts |
| Name | O-Ring |
| Parts No | 12743123 11704999 14560269 14560273 14560272 |
| Machine Number | EW140E EW145B EW160C EW180E EW205D |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
| Working Principle | 1. Installed in a machined groove (O-ring gland) between two mating surfaces (e.g., pipe flange and valve body) |
| 2. Compressed by 10–30% of its cross-section during assembly, creating a tight barrier between the surfaces | |
| 3. Under pressure (fluid/gas), the O-ring deforms and presses against the gland walls, enhancing the seal (automatic pressure energization) | |
| 4. Maintains sealing integrity under temperature/vibration fluctuations, preventing leaks and contamination | |
| Core Functions | 1. Leak prevention: Blocks hydraulic oil, fuel, coolant, or air from escaping sealed interfaces – critical for system pressure retention and environmental safety |
| 2. Contamination protection: Prevents dust, dirt, and moisture from entering sensitive components (e.g., hydraulic pumps) – reduces wear and extends equipment life | |
| 3. Vibration dampening: Elastomeric material absorbs minor vibration between mating surfaces – reduces noise and seal wear | |
| 4. Cost-effective sealing: Compact design replaces complex gasket systems, lowering maintenance time and part costs |
EXCAVATORS EW140C EW140D EW140E EW145B EW160C EW160D EW160E EW180C EW180D EW180E EW205D EW210C EW210D EW230C EWR150E G900 MODELS G900C L45F L45G L45H L50F L50G L50H Vo.lvo.
| VOE968559 O-ring |
| A25D, A25E, A25F, A25F/G, A25G, A30C, A30D, A30E, A30F, A30F/G, A30G, A35D, A35E, A35E FS, A35F, A35F FS, A35F/G, A35F/G FS, A35G, A40D, A40E, A40E FS, A40F, A40F FS, A40F/G, A40F/G FS, A40G, A45G, A4... |
| VOE3537521 O-ring |
| A25D, A25E, A25F, A25F/G, A25G, A30D, A30E, A30F, A30F/G, A30G, A35D, A35E, A35E FS, A35F, A35F FS, A35F/G, A35F/G FS, A35G, A40D, A40E, A40E FS, A40F, A40F FS, A40F/G, A40F/G FS, A40G, A45G, A45G FS,... |
| VOE925257 O-ring |
| 4200B, 4300, 4300B, 4600B, 5350, 5350B, 616B/646, 6300, A20, A20C, A20C VOLVO BM, A25 VOLVO BM, A25B, A25C, A25C VOLVO BM, A25D, A25E, A25F, A25F/G, A25G, A30 VOLVO BM, A30C, A30C VOLVO BM, A30D, A30E... |
| VOE948700 O-ring |
| BL70, BL70B, BL71, BL71B, BL71PLUS, EC140B, EC160B, EC160C, EC160D, EC180B, EC180C, EC180D, EC200D, EC210B, EC210C, EC210D, EC220D, EC235C, EC235D, EC240B, EC240C, EC250D, EC250E, EC290B, EC290C, EC33... |
| VOE983543 O-ring |
| EC140E, EC160B, EC160C, EC160D, EC160E, EC170D, EC180B, EC180C, EC180D, EC180E, EC200B, EC200D, EC210B, EC210C, EC210D, EC220D, EC220E, EC235C, EC235D, EC240B, EC240C, EC250D, EC250E, EC290C, EC300D, ... |
| VOE967344 O-ring |
| 4200B, 4400, 4500, 4600, 4600B, 5350, 5350B, 6300, A20, A20C, A20C VOLVO BM, A25 VOLVO BM, A25B, A25C, A25C VOLVO BM, A25D, A30 VOLVO BM, A30C, A30C VOLVO BM, A30D, A35, A35C, A35C VOLVO BM, A35D, A35... |
| VOE983497 O-ring |
| EC120D, EC135B, EC140B, EC140C, EC140D, EC140E, EC160, EC160B, EC160C, EC160D, EC160E, EC170D, EC180B, EC180C, EC180D, EC180E, EC200B, EC200D, EC210B, EC210C, EC210D, EC220D, EC220E, EC235C, EC235D, E... |
| VOE20536487 O-ring |
| A25D, A25E, A25F, A25F/G, A25G, A30D, A30E, A30F, A30F/G, A30G, A35D, A35E, A35E FS, A35F, A35F FS, A35F/G, A35F/G FS, A35G, A40D, A40E, A40E FS, A40F, A40F FS |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | VOE6213184 | [2] | Screw | |
| 2 | VOE14560268 | [4] | O-ring | |
| 3 | VOE14560264 | [2] | Ring | |
| 4 | ZM5227334 | [2] | Roller bearing | |
| 5 | VOE15184198 | [20] | Bolt | |
| 6 | VOE17277905 | [2] | Wheel gear | |
| 7 | VOE12743123 | [2] | O-ring | |
| 8 | VOE14560265 | [2] | Roller bearing | |
| 9 | VOE14560267 | [2] | Disc | |
| 10 | VOE14560269 | [2] | O-ring | |
| 11 | VOE14560274 | [16] | Disc | |
| 12 | VOE14560276 | [12] | Disc | |
| 13 | VOE14560275 | [4] | Disc | ALT THICK = 2 MM |
| 13 | VOE14560276 | [4] | Disc | ALT THICK = 2,5 MM |
| 13 | VOE14560277 | [4] | Disc | ALT THICK = 3 MM |
| 14 | VOE14558957 | [12] | Screw | |
| 15 | VOE11705004 | [12] | Washer | |
| 16 | VOE11705003 | [12] | Compression spring | |
| 17 | VOE14558956 | [12] | Spring | |
| 18 | VOE14560271 | [2] | Piston | |
| 19 | VOE14560273 | [2] | Ring | |
| 20 | VOE14560272 | [2] | O-ring | |
| 21 | VOE11704997 | [2] | Sealing ring | |
| 22 | VOE11704999 | [2] | Back-up ring | |
| 23 | VOE17444453 | [6] | Pin | |
| 24 | VOE15186555 | [2] | Ring gear | |
| 25 | VOE17230686 | [2] | Planet carrier | |
| 26 | VOE15072021 | [6] | Ring retainer | |
| 27 | VOE15185465 | [6] | Planet gear | |
| 28 | VOE15185466 | [6] | Roller bearing | |
| 29 | VOE15185467 | [2] | Thrust washer | |
| 30 | VOE14558079 | [4] | Screw | |
| 31 | VOE14558914 | [2] | Plug | |
| 32 | VOE11708829 | [2] | O-ring |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
