제품 상세 정보:
결제 및 배송 조건:
|
| 엔진 모델: | 3066 3116 | 기계 모델: | 315C 318C 319C 320B 320B 321B 322B |
|---|---|---|---|
| 응용: | 굴착기 | 제품명: | 플래닛 캐리어 |
| 부품 번호: | 7Y-1432 7Y1432 | 포장: | 표준 수출 상자 |
| 강조하다: | 315C excavator planet carrier,318C final drive spare parts,320B excavator planetary gear |
||

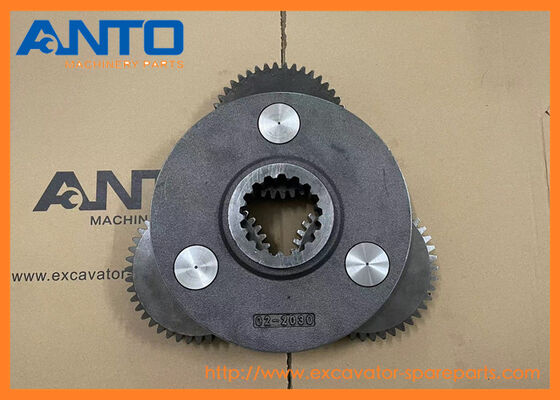

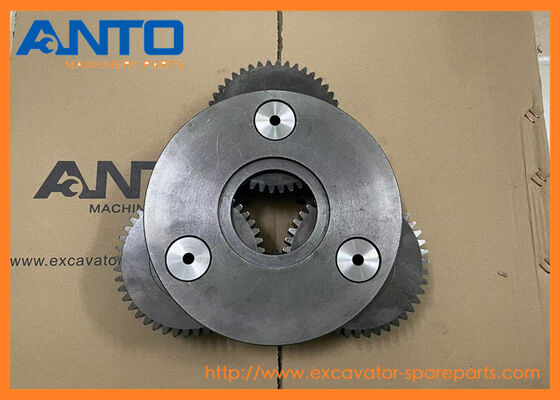

| Name | Planet Carrier |
| Parts No | 7Y-1432 7Y1432 |
| Machine Model | 315C 318B 318C 319C 320B 320B 320C 320E 321B 322B 323D L |
| Category | Final Drive Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
| It holds the planet gears in precise alignment around the sun gear. |
| It transmits torque from the gear set to the track drive sprocket, moving the machine. |
| It withstands extreme radial and axial loads during digging, traveling, and turning. |
| 1218139 CARRIER |
| M315, M315C, M316C, M318 |
| 8U5989 CARRIER-PLANETARY |
| 206B, 212B, M315, M315C, M316C, M318, M318C, M318C MH, M320, M322C |
| 1324344 CARRIER |
| M312, M313C |
| 1324288 CARRIER-PLANETARY |
| M312, M313C |
| 1550823 CARRIER |
| M312, M313C, M313D, M315, M315C, M315D, M315D 2, M316C, M316D, M317D 2 |
| 3756310 CARRIER-PLANETARY |
| M313C, M313D, M315C, M315D, M315D 2, M316C, M316D, M317D 2, M318C, M318D, M318D MH, M322C, M322D, M322D MH |
| 1550823 CARRIER |
| M312, M313C, M313D, M315, M315C, M315D, M315D 2, M316C, M316D, M317D 2 |
| 1484749 CARRIER-PLANETARY |
| 315C, 318B |
| 1582457 CARRIER GP |
| 317B LN, 318B |
| 7Y1433 CARRIER |
| 315C, 315D L, 318B, 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 3... |
| 7Y1432 CARRIER |
| 315C, 315D L, 318B, 318C, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC, 320D2 L, 320E, 320E L, 3... |
| 1550173 CARRIER GP |
| 315B L, 317B LN, 318B |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 7Y-1434 | [1] | SPACER (40X69.5X6-MM THK) | |
| 2 | 096-1773 B | [1] | SHIM (0.15-MM THK) | |
| 096-1774 B | [1] | SHIM (0.3-MM THK) | ||
| 096-1775 B | [1] | SHIM (0.4-MM THK) | ||
| 096-1776 B | [1] | SHIM (0.5-MM THK) | ||
| 096-1777 B | [1] | SHIM (0.6-MM THK) | ||
| 096-1778 B | [1] | SHIM (0.7-MM THK) | ||
| 096-1779 B | [1] | SHIM (0.8-MM THK) | ||
| 096-1780 B | [1] | SHIM (1-MM THK) | ||
| 096-1781 B | [1] | SHIM (1.6-MM THK) | ||
| 3 | 114-1485 | [1] | HOUSING-MOTOR | |
| 4 | 114-1497 | [1] | SEAL GP-DUO-CONE | |
| 5 | 096-6412 | [2] | BALL BEARING | |
| 6 | 114-1486 | [1] | HOUSING | |
| 7 | 114-1539 | [4] | PIN-DOWEL | |
| 8 | 7Y-1436 | [1] | GEAR-COUPLING | |
| 9 | 6D-0692 | [1] | SEAL-O-RING | |
| 10 | 095-1270 M | [2] | SETSCREW-SOCKET (M12X1.75X30-MM) | |
| 11 | 6V-5686 M | [16] | BOLT (M16X2X50-MM) | |
| 12 | 7Y-0223 | [3] | SHAFT-PLANETARY | |
| 13 | 094-1542 | [6] | BEARING-ROLLER | |
| 14 | 7Y-1431 | [3] | GEAR-PLANETARY (30-TEETH) | |
| 15 | 094-1528 | [6] | WASHER (53X84X1-MM THK) | |
| 16 | 095-0891 | [6] | PIN-SPRING | |
| 17 | 6I-6585 | [3] | GEAR-PLANETARY (44-TEETH) | |
| 18 | 094-0616 | [3] | BEARING AS-ROLLER | |
| 19 | 3E-2338 | [2] | PLUG-PIPE | |
| 20 | 7M-8485 | [2] | SEAL-O-RING | |
| 21 | 7Y-1426 | [1] | COVER | |
| 22 | 7Y-0225 | [3] | SHAFT-PLANETARY | |
| 23 | 094-0611 | [6] | WASHER (47.3X76X1-MM THK) | |
| 24 | 094-0580 | [1] | PLATE (10-MM THK) | |
| 25 | 6I-6583 | [1] | GEAR-SUN (13-TEETH) | |
| 26 | 7Y-1430 | [1] | GEAR-SUN (17-TEETH) | |
| 27 | 7Y-1558 | [1] | SPACER (90X119.6X7.5-MM THK) | |
| 28 | 7Y-1432 | [1] | CARRIER | |
| 29 | 7X-2568 M | [16] | BOLT (M20X2.5X180-MM) | |
| 30 | 8T-4123 | [16] | WASHER (3.62X5.75X0.375-MM THK) | |
| 31 | 1U-8846 B | SEALANT-GASKET | ||
| 32 | 102-6456 | [1] | GEAR-RING (79-TEETH) | |
| 33 | 102-6454 | [1] | GEAR-RING (104-TEETH) | |
| 34 | 7Y-1433 | [1] | CARRIER | |
| B | USE AS REQUIRED | |||
| M | METRIC PART |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
