제품 상세 정보:
결제 및 배송 조건:
|
| 범주: | 여행 드라이브 부품 | 기계 모델: | CHR70 EX200-3C EX200-3E EX210H-5 |
|---|---|---|---|

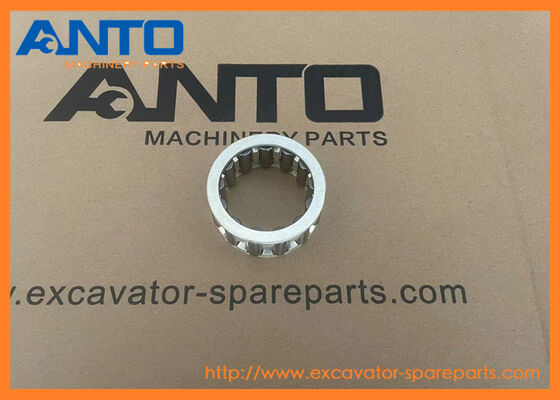

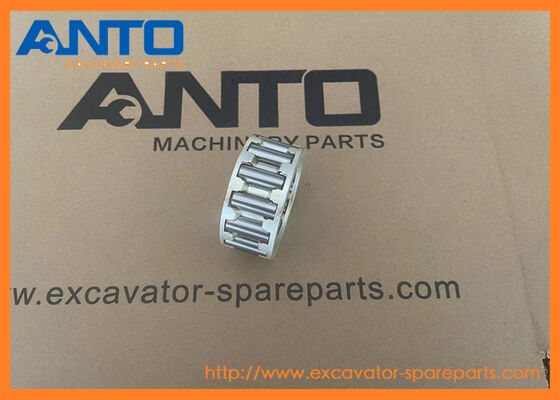

| 제품명: | 바늘 베어링 | 응용: | 굴착기 |
| 부품 번호: | 4317121 | 포장: | 표준 수출 상자 |
| 강조하다: | Hitachi excavator needle bearing,EX200-3 travel drive parts,EX210H-5 bearing with warranty |
||
| Name | Needle Bearing |
| Parts No | 4317121 |
| Machine Model | CHR70 EX200-3C EX200-3E EX200-5 EX210H-5 |
| Category | Travel Drive Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
| Supports rotating shafts and components under high radial pressure |
| Reduces friction between moving parts |
| Ensures smooth, stable rotation with minimal wear |
| Withstands shock loads and heavy working conditions common in excavators and construction machines |
CHR70 EX200-3 EX200-3C EX200-3E EX200-5 EX200-5 JPN EX200-5HG EX200-5HHE EX200-5LV JAP EX200-5X JPN EX200-5Z JPN EX200K-3 EX200LC-5HHE EX200SS-5 EX210H-5 EX210H-5 JPN EX210K-5 JPN EX210LC-5HHE HC2410 HR1200SG HR1200SGM HR320 HR420 RX2000-2 ZX200 Hitachi
| 4611059 BRG. |
| EX100, EX100-2, EX100-5, EX120, EX120-2, EX120-5 JPN, EX150, EX160WD, EX200, EX200-2, EX200-3, EX200-5 JPN, EX220, EX220-2, EX220-5 JPN, EX270, EX300, EX300-5, EX400-5, EX60, EX60-2, EX60-3, EX60-5(LC... |
| 0882710 BRG. |
| HX180B, HX180B-2, ZX200 |
| YC00000491 BRG. |
| ZX200 |
| 4702263 BRG.;BALL |
| EX100, EX100-2, EX100-5, EX120, EX120-2, EX120-5 JPN, EX150, EX160WD, EX200, EX200-2, EX200-3, EX200-5 JPN, EX220, EX220-2, EX220-5 JPN, EX270, EX300, EX300-5, EX400-5, EX60, EX60-2, EX60-3, EX60-5(LC... |
| 0484301 BRG.;NEEDLE |
| RX2000-2, RX2300 |
| 925048 BRG.;BALL |
| EX200-3, EX200-5 JPN, EX220-3, EX220-5 JPN |
| 0484319 BRG.;NEEDLE |
| RX2000-2, RX2300 |
| HA751291 BRG. |
| HR1200SG |
| 0417223 BRG. |
| EX100, EX100-2, EX100-5, EX120, EX120-2, EX120-5 JPN, EX150, EX160WD, EX200, EX200-2, EX200-3, EX200-5 JPN, EX220, EX220-2, EX220-5 JPN, EX270, EX300, EX300-5, EX400-5, EX60, EX60-2, EX60-3 |
| 4313587 BRG;SWINGCIRCL |
| EX20UR, EX20UR-2, EX20UR-2C |
| 4297164 BRG.;ROL. |
| EX1100, EX1100-3, EX1200-5, EX1200-5C, EX1200-5D, EX1200-6, EX1800-3 |
| 4286201 BRG.;SWINGCIRCL |
| EX30-2, EX35-2 |
| 4284195 BRG.;BALL |
| 218HSL, EX700, EX750-5, EX800H-5, SCX900-2, ZR900TS, ZX1000K-3, ZX800, ZX850-3, ZX850-3F, ZX850H, ZX850LC-3-DH, ZX870-5G, ZX870H-3, ZX870H-3-HCMC, ZX870H-3F, ZX870H-5G, ZX870LC-5B, ZX870LC-5G |
| Pos. | Part No | Qty | Parts name | Comments |
| 9150472 | [2] | TRAVEL DEVICE ASS'Y | I 9155253 (for assembly of machine) | |
| -9155253 | [2] | TRAVEL DEVICE ASS'Y | (for transportation) | |
| 0 | 9146471 | [1] | MOTOR;OIL | I 9149087 (for assembly of machine) |
| 0 | -9149087 | [1] | MOTOR;OIL | (for transportation) |
| 2 | 4114753 | [1] | SEAL;GROUP | |
| 3 | 4246793 | [2] | BRG.;ROL. | |
| 4 | 1018736 | [1] | DRUM | |
| 5 | 1018740 | [1] | SPROCKET | |
| 6 | J932055 | [16] | BOLT | |
| 7 | A590920 | [16] | WASHER;SPRING | |
| 8 | 3047448 | [1] | HUB | |
| 9 | 3057125 | [1] | NUT | |
| 10 | 4246783 | [1] | PIN;KNOCK | |
| 12 | 1019147 | [1] | CARRIER | |
| 13 | 3063957 | [3] | GEAR;PLANETARY | |
| 14 | 4317122 | [6] | BRG.;NEEDLE | |
| 15 | 4284521 | [6] | PLATE;THRUST | |
| 16 | 4315838 | [3] | PIN | |
| 17 | 4116309 | [3] | PIN;SPRING | |
| 18 | 3063959 | [1] | GEAR;SUN | |
| 20 | 1020184 | [1] | GEAR;RING | |
| 21 | J931640 | [24] | BOLT | |
| 23 | 2034836 | [1] | CARRIER | |
| 24 | 4192979 | [2] | SPACER | |
| 25 | 3063956 | [3] | GEAR;PLANETARY | |
| 26 | 4317121 | [3] | BRG.;NEEDLE | |
| 27 | 4210851 | [6] | PLATE;THRUST | |
| 28 | 4309995 | [3] | PIN | |
| 29 | 4192020 | [3] | PIN;SPRING | |
| 30 | 3063958 | [1] | GEAR;SUN | |
| 32 | 2034835 | [1] | CARRIER | |
| 33 | 3063955 | [3] | GEAR;PLANETARY | |
| 34 | 4210849 | [3] | BRG.;NEEDLE | |
| 35 | 4192910 | [6] | PLATE;THRUST | |
| 36 | 4210853 | [3] | PIN | |
| 37 | 4173093 | [3] | PIN;SPRING | |
| 38 | 2034834 | [1] | SHAFT;PROP. | |
| 40 | 2034833 | [1] | COVER | |
| 41 | 4285323 | [1] | PIN;STOPPER | |
| 42 | J011230 | [12] | BOLT;SEMS | |
| 43 | 4245797 | [3] | PLUG | |
| 47 | M492564 | [2] | SCREW;DRIVE | |
| 48 | 3053559 | [1] | NAME-PLATE |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
