| 범주: | 이동 변속기 부품 | 기계 모델: | EC250D EC250E EC300D EC300E |
|---|---|---|---|
| 응용: | 굴착기 | 제품명: | 플래닛 캐리어 No.2 Assy |
| 부품 번호: | VOE14599939 | 포장: | 표준 수출 상자 |
| 강조하다: | Planet Carrier Excavator Travel Gearbox,Excavator Gearbox Parts EC250D EC300D,Travel Gearbox Parts for EC250E EC300E |
||
| Name | Planet Carrier No.2 Assy |
| Parts No | VOE14599939 14599939 |
| Machine Model | EC250D EC250E EC300D EC300E |
| Category | Travel Gearbox Parts |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |

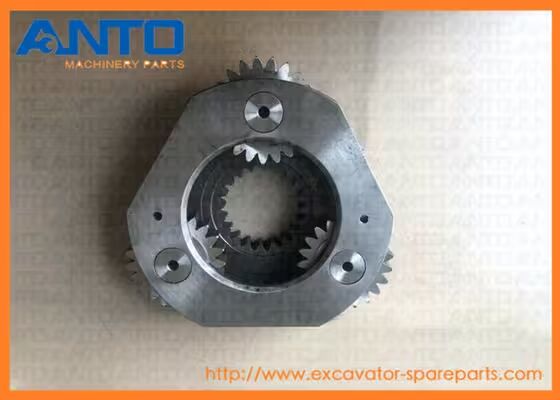

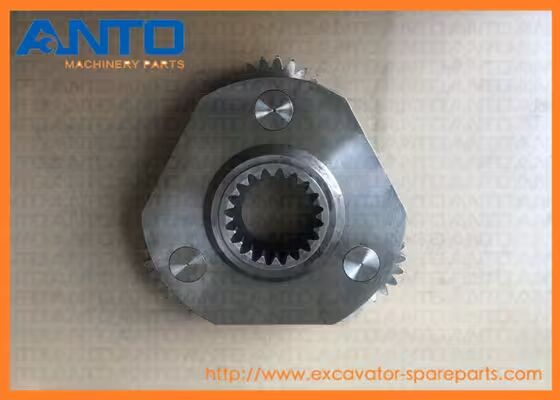

| 1.A planet carrier is a key component inside a planetary gear assembly, which is widely used in the final drive / travel motor / reduction gearbox of heavy equipment. |
| 2.It holds and supports the planet gears so they can rotate around the sun gear and ring gear. |
| 3.Its job is to transmit torque and reduce speed to drive the machine’s tracks or wheels smoothly and powerfully. |
| VOE14603090 Planet carrier |
| EW160D, EW160E, EW180C, EW180D, EW180E, EW205D, EW210D, EW230C, EWR150E |
| VOE15185465 Planet gear |
| EW140C, EW140D |
| VOE14558067 Planet Carrier |
| EW140E, EW145B, EW160C, EW160D, EW180C, EW180D, EW205D, EW210C, EW210D, EW230C |
| VOE14560525 Planet carrier |
| EW140C, EW140D |
| VOE17219487 Planet gear |
| EW160E, EW180C, EW180E, EW205D, EW210D, EWR150E, L45H, L50H |
| VOE14560278 Planet carrier |
| EW140C |
| VOE17443616 Planet gear |
| EW140E, EW145B, EWR150E |
| VOE15185465 Planet gear |
| EW140C, EW140D |
| VOE14603090 Planet carrier |
| EW160D, EW160E, EW180C, EW180D, EW180E, EW205D, EW210D, EW230C, EWR150E |
| VOE1650536 Planet kit |
| A35 |
| VOE11711916 Planet carrier |
| EW140B, L40, L40B, L45, L45B |
| VOE11705028 Planet carrier |
| EW160, EW160B |
| VOE11711960 Planet carrier |
| EW140B, L40, L40B, L45, L45B |
| VOE14558067 Planet Carrier |
| EW140E, EW145B, EW160C, EW160D, EW180C, EW180D, EW205D, EW210C, EW210D, EW230C |
| VOE11705863 Planet carrier |
| EW160, EW160B |
| VOE11713101 Planet gear |
| EW140, EW140B, EW160, EW160B |
| Pos. | Part No | Qty | Parts name | Comments |
| VOE14599921 | [1] | Travel gearbox | ||
| 1 | VOE14599922 | [1] | Housing | |
| 2 | VOE14599932 | [1] | Gear | |
| 3 | SA14599923 | [2] | Bearing | |
| 4 | VOE14599927 | [1] | Shim | THICK = 0,6 MM |
| 4 | VOE14599928 | [1] | Shim | THICK = 0,8 MM |
| 4 | VOE14599929 | [1] | Shim | THICK = 1,0 MM |
| 4 | VOE14599930 | [1] | Shim | THICK = 0,7 MM |
| 4 | VOE14599931 | [1] | Shim | THICK = 0,9 MM |
| 4 | VOE14607977 | [1] | Shim | THICK = 1,1 MM |
| 5 | VOE14599926 | [1] | Retainer | |
| 6 | VOE14599933 | [1] | Planet carrier | |
| 7 | 14599934 | [1] | Carrier | |
| 8 | VOE14566415 | [4] | Pin | |
| 9 | VOE14599935 | [4] | Planetary Gear | |
| 10 | VOE14566414 | [8] | Washer | |
| 11 | SA9325-06012 | [4] | Spring pin | |
| 12 | SA1036-00300 | [1] | Ring | |
| 13 | VOE14566412 | [4] | Needle bearing | |
| 14 | VOE983919 | [16] | Hex. socket screw | |
| 15 | VOE14599938 | [1] | Gear | |
| 16 | VOE14599939 | [0001] | Planet carrier | |
| 17 | VOE14599944 | [3] | Pin | |
| 18 | 14599940 | [1] | Carrier | |
| 19 | VOE14599941 | [3] | Planetary Gear | |
| 20 | VOE14599943 | [6] | Washer | |
| 21 | SA9325-06012 | [3] | Spring pin | |
| 22 | VOE14599942 | [3] | Needle Bearing | |
| 23 | VOE14566433 | [1] | Thrust washer | |
| 24 | VOE14599945 | [1] | Gear | |
| 25 | VOE14599946 | [1] | Planet carrier | |
| 26 | 14599947 | [1] | Carrier | |
| 27 | VOE14599948 | [3] | Planetary Gear | |
| 28 | VOE14599950 | [6] | Washer | |
| 29 | VOE14599951 | [3] | Pin | |
| 30 | VOE951955 | [3] | Spring pin | |
| 31 | VOE14599949 | [3] | Needle Bearing | |
| 32 | VOE14569232 | [1] | Ring | |
| 33 | VOE14566417 | [1] | Ring | |
| 34 | VOE14599952 | [1] | Gear | |
| 35 | VOE9541-01038 | [1] | Snap Ring | |
| 36 | VOE14599953 | [1] | Cover | |
| 37 | VOE982211 | [18] | Hexagon screw | |
| 38 | SA9213-20000 | [18] | Spring washer | |
| 39 | VOE14883847 | [2] | Plug | |
| 40 | VOE990557 | [2] | O-ring | |
| 41 | VOE9324-21617 | [4] | Pin | |
| 42 | VOE14599925 | [1] | Seal |
