제품 상세 정보:
결제 및 배송 조건:
|
| 범주: | 실린더 헤드 | 엔진 모델: | C6.6 |
|---|---|---|---|
| 응용: | 굴착기 | 제품명: | 입구 밸브 |
| 부품 번호: | 276-8122 176-8124 | 포장: | 표준 수출 상자 |
| 강조하다: | C6.6 excavator inlet valve,276-8122 excavator spare part,176-8124 hydraulic valve fitting |
||

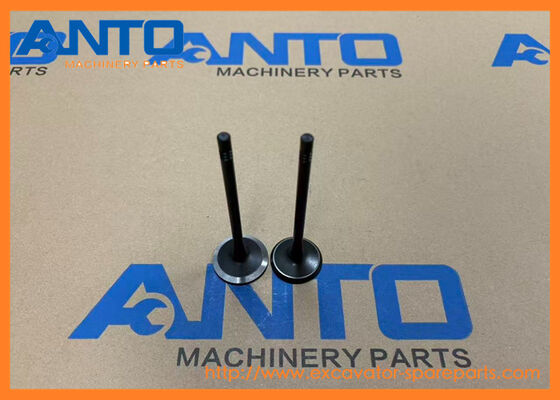

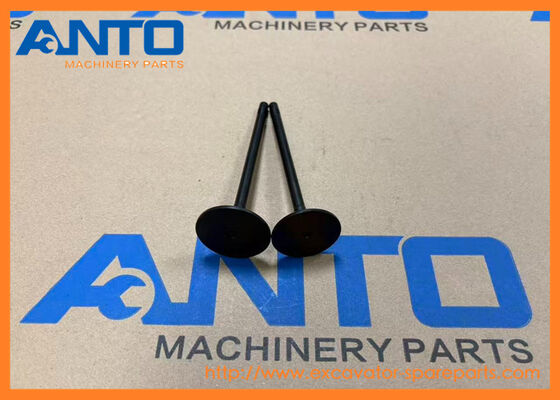

| Name | Inlet Valve |
| Parts No | 276-8122 176-8124 |
| Engine Model | C6.6 |
| Category | Cylinder Head |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
| 1. Regulate the inflow of clean air or fuel-air mixture into the engine cylinder. |
| 2. Seal the combustion chamber to prevent pressure leakage during compression and ignition. |
| 3. Cooperate with exhaust valves to complete engine four-stroke cycle: intake, compression, power, exhaust. |
| 1. High temperature and corrosion resistance |
| 2. Precision sealing performance |
| 3. Long service life, low failure rate |
| 4. Strict dimensional tolerance for perfect fitting engine cylinder head |
| 2798825 VALVE MECHANISM GP |
| 2470C, 553C, 559, 953D, AP-600D, AP-655D, BG600D, BG655D, C6.6, CP-56, CP-64, CP-76, CS-56, CS-56B, CS-64, CS-68B, CS-74, CS-74B, CS-78B, D6K, D6K LGP, D6K XL, PL61 |
| 3306502 VALVE GP-FLUID SAMPLING |
| 924H, 924HZ, 928H, 928HZ, C6.6 |
| 2822369 VALVE MECHANISM GP |
| 963D, C6.6 |
| 2858965 VALVE MECHANISM GP |
| C6.6 |
| 2876830 VALVE MECHANISM GP |
| C6.6 |
| 3096673 VALVE MECHANISM GP |
| C6.6 |
| 3144018 VALVE AS-PRESSURE RELIEF |
| 1090, 1190, 1190T, 120H, 120H ES, 120H NA, 120K, 120K 2, 120M, 120M 2, 1290T, 12H, 12H ES, 12H NA, 12K, 12M, 12M 2, 12M 3, 12M 3 AWD, 135H, 135H NA, 1390, 140H, 140H ES, 140H NA, 140K, 140K 2, 140M, 1... |
| 3096678 VALVE-INLET |
| 120M, 12M, 2470C, 320D GC, 320D L, 323D L, 323D2 L, 420E, 430E, 450E, 525D, 535D, 545D, 553C, 559, 613G, 914G, 924H, 924HZ, 924K, 928H, 928HZ, 930K, 938H, 938K, 950 GC, 953D, 963D, AP-600D, AP-655D, A... |
| 3399637 VALVE-EXHAUST |
| 120M, 12M, 2470C, 320D GC, 320D L, 323D L, 323D2 L, 420E, 430E, 450E, 525D, 535D, 545D, 553C, 559, 613G, 914G, 924H, 924HZ, 924K, 928H, 928HZ, 930K, 938H, 938K, 950 GC, 953D, 963D, AP-600D, AP-655D, A... |
| 3055291 VALVE AS-RELIEF |
| 120M, 12M, 2470C, 311D LRR, 312D, 312D L, 313D, 314D CR, 314D LCR, 315D L, 318D L, 319D, 319D L, 319D LN, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 321D LCR, 323D L, 323D... |
| 2768124 VALVE-EXHAUST |
| C6.6 |
| 1337403 VALVE-AIR CLEANER DUST |
| 3056, C4.4, C4.4XQ100, C4.4XQ80, C6.6, C7.1 |
| 2481064 VALVE GP-SOLENOID |
| AP-600D, AP-655D, C4.4, C6.6 |
| 3338970 VALVE-EXHAUST |
| C4.4 |
| 2231174 VALVE AS |
| G3520B |
| 1454587 VALVE-CONTROL |
| G3606B |
| 3139090 VALVE GP-SOLENOID |
| G3606B, G3612, G3616 |
| 3199074 VALVE-EXHAUST |
| G3608, G3612 |
| 2886588 VALVE-BREATHER |
| C0.5, C0.7 |
| 3022385 VALVE AS-RELIEF |
| C6.6 |
| 2272373 VALVE-SELECTOR |
| C6.6 |
| 2272366 VALVE-BALL |
| C6.6 |
| 2280171 VALVE AS-INLET |
| C6.6 |
| 3261015 VALVE GP-DRAIN |
| 2470C, 553C, 953D, 963D, C6.6, D5R LGP, D6K |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 276-8115 | [1] | CYLINDER HEAD AS | |
| 2 | 2B-0858 | [2] | PLUG-PIPE | |
| 3 | 232-1322 | [1] | PLUG | |
| 4 | 199-9751 | [1] | SEAL-O-RING | |
| 5 | 276-8116 | [6] | PLUG-CORE | |
| 6 | 276-8117 | [13] | PLUG-CORE | |
| 7 | 170-6669 | [1] | PLUG | |
| 9 | 276-8122 | [12] | VALVE-INLET | |
| 10 | 276-8131 | [24] | SEAL-VALVE STEM | |
| 11 | 276-8132 | [24] | SPRING-VALVE | |
| 12 | 276-8133 | [24] | CAP-VALVE | |
| 13 | 276-8123 | [48] | COTTER-CAP | |
| 14 | 276-8124 | [12] | VALVE-EXHAUST | |
| 15 | 276-8134 | [14] | BOLT-SPECIAL (CYLINDER HEAD) | |
| 16 | 176-3141 | [1] | GASKET-HEAD | |
| 380-2074 AB | [1] | GASKET-CYLINDER HEAD (0.25-MM THK) | ||
| A | NOT PART OF THIS GROUP | |||
| B | USE AS REQUIRED | |||
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
