제품 상세 정보:
결제 및 배송 조건:
|
| 범주: | 엔진 부분 | 기계 모델: | EC160D EC160E EC170D EC180C EC180D |
|---|---|---|---|
| 응용: | 굴착기 | 제품명: | 스윙 모터 |
| 부품 번호: | VOE14538545 14538545 | 포장: | 표준 수출 상자 |
| 강조하다: | Excavator Swing Motor for EC160E,Swing Motor Engine Parts EC170D,EC180C Excavator Swing Motor |
||

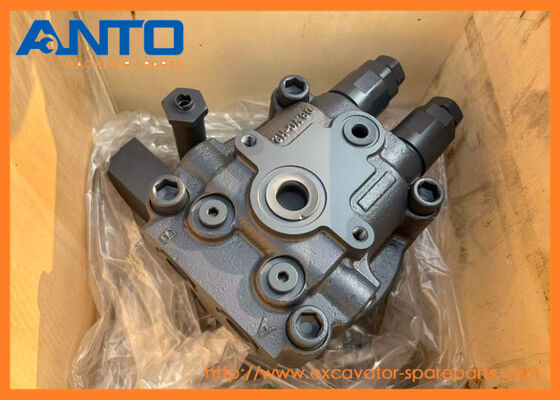

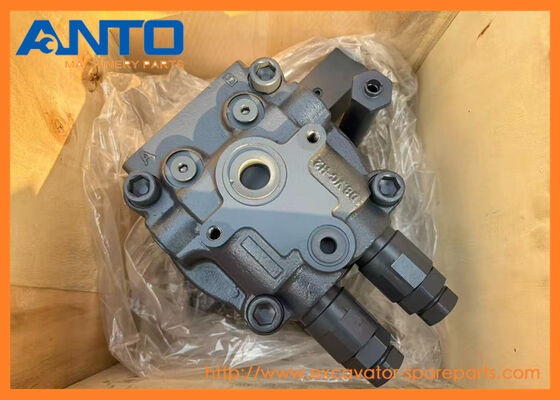

| Name | Swing Motor |
| Parts No | VOE14538545 14538545 |
| Machine Model | EC160D EC160E EC170D EC180C EC180D |
| Category | Engine Part |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT EMS |
| Packing | As request or standard packing |
| VOE14563342 Swing gear |
| EC160B, EC160C, EC180B, EC180C, EW160C |
| VOE14540719 Swing gearbox |
| EC160C, EC160D, EC160E, EC170D, EC180C, EC180D, EC180E |
| VOE14577176 Swing gear |
| EC160B, EC160C, EC160D, EC180B, EC180C, EC180D, EW160C |
| VOE14647522 Swing gear |
| EC160E, EC170D, EC180E |
| VOE14563335 Swing gear |
| EC290B, EC290C |
| VOE14563327 Swing gear |
| EC210B |
| VOE14566202 Swing gearbox |
| EC240B, EC240C, EC250D, EC250E, FC2924C |
| VOE14520573 Swing Gear |
| EC290B |
| VOE14215473 Swing bearing |
| EC420 ÅKERMAN, EC450, EC450 ÅKERMAN |
| VOE14539045 Swing motor |
| EC140C, EC140D, EC140E |
| VOE14573100 Swing Motor |
| EC330B, EC330C, EC360B, EC360C |
| VOE14505766 Swing Gear |
| EC210B |
| VOE14633636 Swing motor |
| EC300D, EC300E, PL3005D, PL3005E |
| VOE14559150 Swing motor |
| EW140E, EW145B |
| VOE14530324 Swing Gear |
| EC210B |
| Pos. | Part No | Qty | Parts name | Comments |
| VOE14538545 | [1] | Swing motor | ||
| 1 | SA8230-04420 | [1] | Inner race | |
| 2 | SA8220-15630 | [1] | Seal | |
| 3 | SA8230-00790 | [1] | Roller bearing | |
| 4 | SA8230-04320 | [1] | Spring | |
| 5 | SA8230-04360 | [1] | Plate | |
| 6 | SA8230-04410 | [1] | Plate | |
| 7 | VOE14519350 | [9] | Piston | |
| 8 | SA8230-22900 | [3] | Plate | |
| 9 | SA8230-22910 | [3] | Friction plate | |
| 10 | SA8230-25140 | [1] | O-ring | |
| 11 | SA8230-02411 | [2] | O-ring | |
| 12 | SA8230-04230 | [10] | Spring | |
| 13 | SA8230-31150 | [2] | Pin | |
| 14 | VOE993320 | [3] | O-ring | |
| 15 | VOE14552099 | [3] | Cap | |
| 16 | SA8230-04240 | [4] | Spring | |
| 17 | SA8230-00891 | [4] | Sealing ring | |
| 18 | SA8230-04330 | [4] | Bushing | |
| 19 | SA8230-03990 | [1] | Plate | |
| 20 | SA8230-00820 | [1] | Needle Bearing | |
| 21 | VOE14519351 | [1] | Piston | |
| 22 | SA8230-01030 | [1] | Ring | |
| 23 | VOE14508587 | [1] | Cylinder | |
| 24 | VOE14508589 | [1] | Housing | |
| 25 | SA8230-23350 | [1] | Plug | |
| 26 | VOE14508590 | [2] | Valve | |
| 27 | VOE14625246 | [1] | Ring | |
| 28 | VOE990557 | [1] | O-ring | |
| 29 | VOE983503 | [1] | O-ring | |
| 30 | VOE14534867 | [1] | Cover | |
| 31 | VOE14534868 | [1] | Valve | |
| 32 | SA8230-00610 | [3] | Bolt | |
| 33 | SA8230-11610 | [2] | Cap | |
| 34 | VOE14880821 | [2] | Back-up ring | |
| 35 | VOE983525 | [4] | O-ring | |
| 36 | VOE14596241 | [2] | Spring | |
| 37 | SA8230-11110 | [2] | Non-return valve | |
| 38 | VOE14508592 | [2] | Relief valve | |
| 39 | VOE984135 | [4] | Hex. socket screw | |
| 100 | VOE14534869 | [1] | Seal |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 12-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
