제품 상세 정보:
결제 및 배송 조건:
|
| Model number: | 320 L 320B 320B L 320N | Product name: | Pipe |
|---|---|---|---|
| Part number: | 5I7705 5I-7705 | Transportation: | By sea/air By express |
| Packing: | Standard Export Carton | Warranty: | 6/12 Months |
| 강조하다: | 320B excavator engine pipe fitting,5I7705 excavator engine part,320N engine pipe replacement part |
||

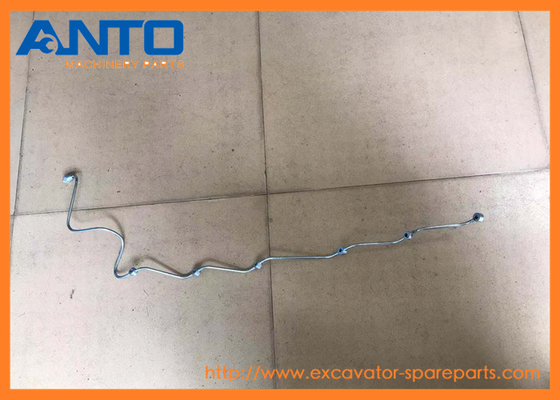

5I7705 5I-7705 Pipe Excavator Engine Parts Fitting For 320 L 320B 320B L 320N
Specification
| Application | C A T Excavator Engine Parts |
| Name | Pipe |
| Parts No | 5I7705 5I-7705 |
| Model |
320 L 320B 320B L 320N |
| Delivery time | Stock for urgent delivery |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Design | made in china |
| Means of transport | By sea/air, DHL FEDEX UPS TNT Express |
| Packing | As request or standard packing |
Fluid Conveyance:
1.In hydraulic systems, it may connect pumps to cylinders, valves, or motors, delivering high-pressure fluid to power functions like lifting, digging, or articulation.
2.engine systems, it could route fuel from the tank to the injection system or carry coolant between the radiator and engine block to regulate temperature.
EXCAVATOR 320 L 320B 320B L 320N
| 5I8048 PIPE |
| 320B, 320C, 320C FM |
| 1786582 PIPE |
| 320C, 320C FM |
| 1932702 PIPE |
| 320C, 320C FM, 320C L, 320D, 320D LRR, 321C, 323D L, 323D LN |
| 2128599 PIPE |
| 320C, 320C FM, 320C L, 320D, 320D LRR, 321C, 323D L, 323D LN |
| 2128600 PIPE |
| 320C, 320C FM, 320C L, 320D, 320D LRR, 321C, 323D L, 323D LN |
| 2128601 PIPE |
| 320C, 320C FM, 320C L, 320D, 320D LRR, 321C, 323D L, 323D LN |
| 2128602 PIPE |
| 320C, 320C FM, 320C L, 320D, 320D LRR, 321C, 323D L, 323D LN |
| 2128603 PIPE |
| 320C, 320C FM, 320C L, 320D, 320D LRR, 321C, 323D L, 323D LN |
| 2128604 PIPE |
| 320C, 320C FM, 320C L, 320D, 320D LRR, 321C, 323D L, 323D LN |
| 2128605 PIPE |
| 320C, 320C FM, 320C L, 320D, 320D LRR, 321C, 323D L, 323D LN |
| 2666346 PIPE |
| 320D, 320D FM, 320D FM RR, 320D L, 320D LN, 320D LRR, 320D RR, 321C, 321D LCR |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 113-0363 | [6] | SUPPORT | |
| 2 | 1R-6573 | [6] | GASKET | |
| 3 | 5I-7705 | [1] | PIPE | |
| 4 | 085-7269 | [12] | WASHER | |
| 5 | 5I-5111 M | [6] | NUT (M8X1-THD) | |
| 6 | 8T-4189 M | [6] | BOLT (M8X1.25X20-MM) | |
| 7 | 3B-4505 | [8] | LOCKWASHER | |
| 8 | 5I-7743 | [1] | FITTING | |
| 9 | 5I-7707 | [1] | PIPE | |
| 10 | 5I-7708 | [1] | PIPE | |
| 11 | 5I-7709 | [1] | PIPE | |
| 12 | 5I-7710 | [1] | PIPE | |
| 13 | 5I-7711 | [1] | PIPE | |
| 14 | 5I-7712 | [1] | PIPE | |
| 15 | 8T-4196 M | [4] | BOLT (M10X1.5X35-MM) | |
| 16 | 7X-0796 | [9] | LOCKWASHER | |
| 17 | 5I-7647 | [1] | BRACKET | |
| 18 | 096-9529 | [1] | SEAL-O-RING | |
| 19 | 5I-7576 | [1] | FLANGE | |
| 20 | 5I-7744 | [1] | SEAL-O-RING | |
| 21 | 6V-7357 M | [3] | BOLT (M6X1X25-MM) | |
| 22 | 5I-5108 M | [2] | BOLT (M8X1.25X18-MM) | |
| 23 | 8T-4121 | [4] | WASHER-HARD (11X21X2.5-MM THK) | |
| 24 | 117-6430 | [1] | HOSE | |
| 25 | 125-2983 | [1] | FITTING | |
| 26 | 135-2345 | [1] | BRACKET | |
| 27 | 096-2501 | [1] | LOCKWASHER | |
| 28 | 8T-4179 M | [1] | BOLT (M12X1.75X20-MM) | |
| 29 | 094-9581 | [6] | CLAMP | |
| 30 | 6V-8231 M | [1] | NUT (M10X1.25-THD) | |
| 31 | 094-9034 | [1] | HOSE AS | |
| 32 | 5C-9553 M | [5] | BOLT (M6X1X16-MM) | |
| 33 | 096-2500 | [8] | LOCKWASHER | |
| 34 | 094-9597 | [5] | CLAMP | |
| 35 | 094-9596 | [5] | CLAMP | |
| 36 | 8T-4186 M | [2] | BOLT (M10X1.5X40-MM) | |
| 37 | 154-0489 | [6] | SEAL-RUBBER | |
| M | METRIC PART | |||
1.Final drive: Travel gearbox, Travel gearbox with motor, Carrier ass'y, Sun gear shaft
2.Swing gear: Center joint ass'y, Swing gearbox, Swing motor, Gear reduction ass'y
3.Undercarriage Parts: Track roller, Track link ass'y, Idler roller, Sprocket, Spring ass'y
4.Hydraulic parts: Hydraulic pump, Main Valve, Hydraulic cylinder
5. Engine parts: Engine Ass’y, Crankshaft, Turbocharger, Fuel injector, Flywheel, Starter motor, Cooling fan, Solenoid valve
6.Electrical parts: Wiring harness, Controller, Monitor
7.Other: Cylinder Seal Kits, Fuel tank, Filter, Boom, Arm, Bucket etc.
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Advantage
1. Offer Top quality & competitive products
2. Support 6-month warranty
3. 100% tested before shipping
4. Delivery in time
5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator
6. More than 15 years production and 11 years foreign trade experience
7. Professional QC team
8. Best sales team, 24 hours service
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
