6217-71-1120 6217711120 Fuel Pump Excavator Engine Parts Fit For KOMATSU SA6D140E

나는 폴에게서 도움을 평가합니다, 그는 prefessional이고 무슨 부속을 나가 필요로 하는 정확하게 알고 있습니다. 나의 CAT는 아무 문제 없이 일하기 위하여 돌아갔습니다.

—— Raphael

마지막 드라이브를 얻고 그것의 아름다운 나는 생각합니다. 우리는, 나의 기계 지금 다시 일하기 위하여 갑니다 그것을 히타치 우리의 ZX330 굴착기에서 조립해 달라고 하는 것을 가지고 있습니다. 많은 감사

—— Kevin

빠른 배송, 도착한 부품의 품질이 우수하고 엔진이 수리되어 최대 출력으로 완벽하게 작동합니다. 감사합니다, 신의 축복이 있기를.

—— Mohammed

제가 지금 온라인 채팅 해요

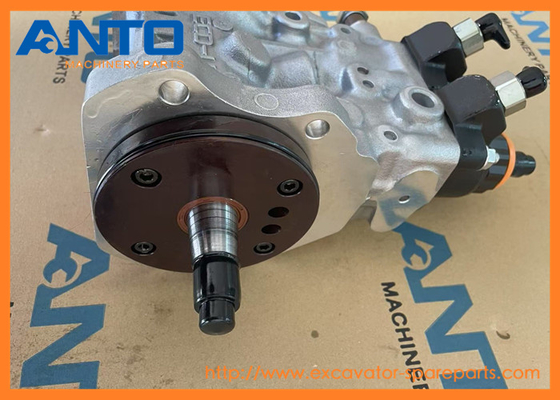

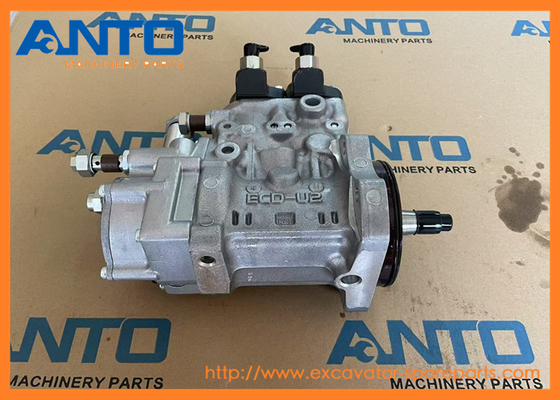

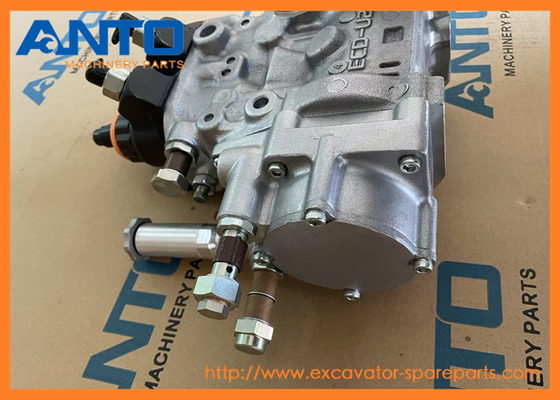

6217-71-1120 6217711120 Fuel Pump Excavator Engine Parts Fit For KOMATSU SA6D140E

6217-71-1120 6217711120 Fuel Pump Excavator Engine Parts Fit For KOMATSU SA6D140E
6217-71-1120 6217711120 Fuel Pump Excavator Engine Parts Fit For KOMATSU SA6D140E 6217-71-1120 6217711120 Fuel Pump Excavator Engine Parts Fit For KOMATSU SA6D140E 6217-71-1120 6217711120 Fuel Pump Excavator Engine Parts Fit For KOMATSU SA6D140E

큰 이미지 :  6217-71-1120 6217711120 Fuel Pump Excavator Engine Parts Fit For KOMATSU SA6D140E

제품 상세 정보:
Place of Origin: China
브랜드 이름: OEM
Model Number: 6217-71-1120 6217711120
결제 및 배송 조건:
Minimum Order Quantity: 1 PCS
가격: USD 1449/PCS
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: T/T, D/P, D/A,Western Union, L/C, MoneyGram
Supply Ability: 100-2000
상세 제품 설명
Product name: Fuel pump Part number: 6217-71-1120 6217711120
Model number: SA6D140E Packing: Standard Export Carton
Warranty: 6/12 Months Applicable brand: KOMATSU
강조하다:

Komatsu excavator fuel pump

,

SA6D140E engine fuel pump

,

6217711120 replacement fuel pump

  • 6217-71-1120 6217711120 Fuel Pump Excavator Engine Parts Fit For KOMATSU SA6D140E







  • Specification
Product name Fuel pump
Part number 6217-71-1120 6217711120
Model SA6D140E
Applicable brand KOMATSU
MOQ 1 PCS
Warranty 6 months
Payment term T/T, Western Union, PAYPAL
Delivery time 1-3 days after receiving the payment
Packing As request or standard packing
Means of transport By sea/air, DHL FEDEX UPS TNT EMS







  • Function

1.Absorbing fuel: The fuel pump is usually installed in the fuel tank or connected to the fuel tank. It uses the power of the internal motor or other driving mechanisms to suck fuel from the fuel tank. For example, in an electric fuel pump, the DC motor drives the impeller to rotate, creating a vacuum at the inlet, which sucks in the filtered fuel.


2.Pressurizing fuel: After absorbing the fuel, the fuel pump pressurizes it to ensure that the fuel can flow smoothly through the fuel pipeline, fuel filter, and other components, and reach the fuel injector or other parts that need fuel. This pressure can make the fuel be injected into the engine cylinder in a better atomized state, which is conducive to combustion.







  • Compatible models

ENGINES SA6D140E







  • Diagram parts list
Pos. Part No Qty Parts name Comments
  6217-71-1121 [1] FUEL PUMP ASS'Y Komatsu OEM 15.4 kg.
  ["SN: 113043-UP"] analogs:["6217711120", "6217711122"] |$1.
  6217-71-1120 [1] FUEL PUMP ASS'Y Komatsu OEM 15.4 kg.
  ["SN: 112158-113042"] analogs:["6217711121", "6217711122"] |$2.
  ND094200-0251 [1] FEED PUMP ASS'Y Komatsu 2.39 kg.
  ["SN: 112158-UP"] analogs:["ND0942000250"] |$6.
1 ND094210-0070 [1] HOUSING ASS'Y Komatsu 3.43 kg.
  ["SN: 112158-UP"]
2 ND094231-0050 [1] CASING Komatsu China
  ["SN: 112158-UP"]
3 ND094230-0040 [1] PUMP SUB ASS'Y Komatsu 0.2 kg.
  ["SN: 112158-UP"]
4 ND094241-0040 [1] PLATE Komatsu China
  ["SN: 112158-UP"]
5 ND094244-0040 [1] PLATE Komatsu China
  ["SN: 112158-UP"]
6 ND094251-0050 [1] COVER Komatsu China
  ["SN: 112158-UP"]
7 ND094082-0040 [4] SCREW Komatsu China
  ["SN: 112158-UP"]
8 ND094086-0200 [1] O-RING Komatsu 0.005 kg.
  ["SN: 112158-UP"]
9 ND094087-0050 [1] SEAL,OIL Komatsu 0.009 kg.
  ["SN: 112158-UP"]
10 ND094205-0060 [1] KEY Komatsu 0.005 kg.
  ["SN: 112158-UP"]
11 ND092124-0010 [2] SPRING,CHECK VALVE Komatsu 0.004 kg.
  ["SN: 112158-UP"]
12 ND092121-0011 [2] VALVE,CHECK Komatsu 0.015 kg.
  ["SN: 112158-UP"] analogs:["ND0921210010"]
13 ND092126-0010 [1] PLUG,CHAMBER Komatsu 0.025 kg.
  ["SN: 112158-UP"]
14 ND092130-0360 [1] PRIMING PUMP Komatsu 0.09 kg.
  ["SN: 112158-UP"]
15 ND092125-0010 [2] GASKET Komatsu 0.014 kg.
  ["SN: 112158-UP"]
16 ND090317-0060 [2] PLUG,SCREW Komatsu China
  ["SN: 112158-UP"]
17 ND949018-1500 [2] WASHER, 1MM Komatsu 0.001 kg.
  ["SN: 112158-UP"]
18 ND949044-3320 [4] BOLT Komatsu 0.006 kg.
  ["SN: 112158-UP"]
19 ND090222-0070 [6] WASHER Komatsu 0.003 kg.
  ["SN: 112158-UP"]
20 ND090310-0490 [1] VALVE,OVERFLOW Komatsu 0.08 kg.
  ["SN: 112158-UP"]
21 ND092220-0040 [1] FILTER Komatsu 0.006 kg.
  ["SN: 112158-UP"]
22 ND092223-0042 [1] SCREW Komatsu 0.063 kg.
  ["SN: 112158-UP"]
24. ND096449-0070 [4] BOLT,SOCKET Komatsu 0.01 kg.
  ["SN: 112158-UP"]

6217-71-1120 6217711120 Fuel Pump Excavator Engine Parts Fit For KOMATSU SA6D140E 0







  • More other fuel parts fit for KOMATSU machine
6736-71-5781 FUEL PUMP ASSEMBLY
PC300, PC360, S6D102E, S6D102E1, S6D114E, SA6D102E, SAA6D114E, WA400

6127-71-6205 FUEL FILTER ASS'Y
EGS160, EGS190, S6D108, S6D125, S6D155, S6D170, S6D170E, SA6D108, SA6D125, SA6D155, SA6D170, SA6D170E, WA470

600-311-9300 FUEL FILTER ASS'Y
S6D170, WA600

21T-04-67111 FUEL TANK
PC1800

6206-73-6201 FUEL FILTER ASS'Y
4D95LE, S6D95L

103-04-00010 FUEL TANK ASS'Y
D21A, D21P

YM729137-53100 FUEL NOZZLE ASS'Y
3D84

154-04-00020 FUEL TANK ASS'Y
D80A, D80E, D80P, D85A, D85E, D85P

195-03-00075 FUEL TANK ASS'Y
D355A

6136-72-6100 FUEL FILTER ASS'Y
6D105, S6D105, S6D110

113-04-00011 FUEL TANK ASS'Y
D31A, D31P, D31PL, D31Q, D31S

155-04-00010 FUEL TANK ASS'Y
D95S







  • Other parts we can supply.

1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.



2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.



3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.



4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.



5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.



6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.







  • Packaging & Delivery

Packaging Details:



1. According to orders,pack the spare parts one by one by oil paper;



2. Put them into small carton boxes one by one;



3. Put the packed small carton boxes into bigger carton boxes one by one;



4. Put the bigger carton boxes into wooden boxes if necessary especially for the shipments by sea.



5. goods is packed by oil paper and plastic bags inside



6. using wooden package.



7. we support the custom-made demand for package



Port: Huangpu



Lead Time : Within 2 days after receiving the pay me.



Shipping: Expedited Shipping(FedEx/DHL/TNT/UPS), air cargo, truck, by sea.









  • Warranty

1. Warranty Period: 3 Months' warranty from the date of arrival. Longer period of 6 months' warranty could be offered with higher price level.



2. Warranty type: replacement of the parts that have quality problem.



3. Warranty is not valid for below s

* Customer give wrong information about the order

* Force Majeure

* Wrong installation and operation

* Rust because of wrong stock & maintenance
