제품 소개굴착기 엔진 부품

320/08719 Alternator JCB Excavator Engine Parts Fitting For 9TST 12V

나는 폴에게서 도움을 평가합니다, 그는 prefessional이고 무슨 부속을 나가 필요로 하는 정확하게 알고 있습니다. 나의 CAT는 아무 문제 없이 일하기 위하여 돌아갔습니다.

—— Raphael

마지막 드라이브를 얻고 그것의 아름다운 나는 생각합니다. 우리는, 나의 기계 지금 다시 일하기 위하여 갑니다 그것을 히타치 우리의 ZX330 굴착기에서 조립해 달라고 하는 것을 가지고 있습니다. 많은 감사

—— Kevin

빠른 배송, 도착한 부품의 품질이 우수하고 엔진이 수리되어 최대 출력으로 완벽하게 작동합니다. 감사합니다, 신의 축복이 있기를.

—— Mohammed

제가 지금 온라인 채팅 해요

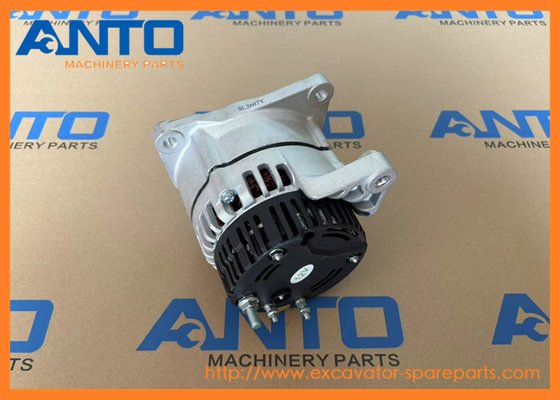

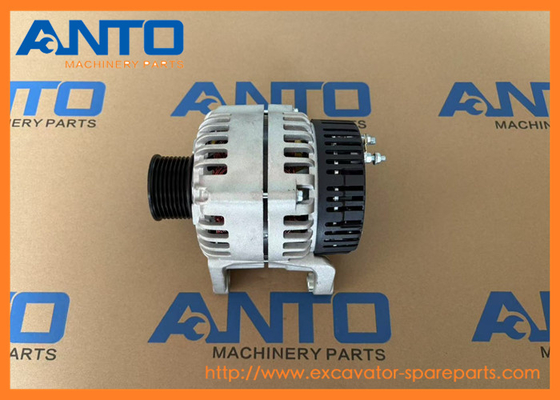

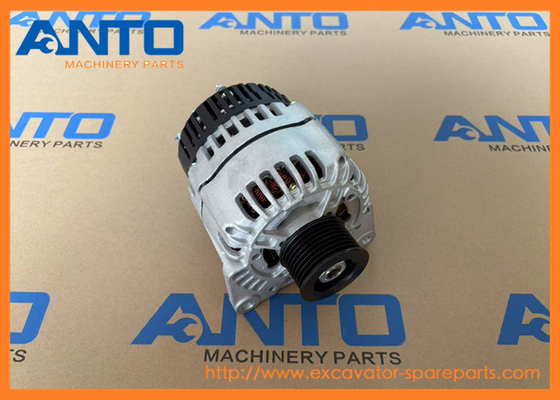

320/08719 Alternator JCB Excavator Engine Parts Fitting For 9TST 12V

320/08719 Alternator JCB Excavator Engine Parts Fitting For 9TST 12V
320/08719 Alternator JCB Excavator Engine Parts Fitting For 9TST 12V 320/08719 Alternator JCB Excavator Engine Parts Fitting For 9TST 12V 320/08719 Alternator JCB Excavator Engine Parts Fitting For 9TST 12V

큰 이미지 :  320/08719 Alternator JCB Excavator Engine Parts Fitting For 9TST 12V

제품 상세 정보:
Place of Origin: China
브랜드 이름: OEM
Model Number: 320/08719
결제 및 배송 조건:
Minimum Order Quantity: 1 PCS
가격: 85 USD / pcs
Packaging Details: Wooden box for heavy parts, paper carton for light parts
Delivery Time: 3-7 working days
Payment Terms: T/T, D/P, D/A,Western Union, L/C, MoneyGram
Supply Ability: 100-2000
상세 제품 설명
Voltage: 12 V Category: Engine Parts
Product name: Alternator Application: Wheel Loader Excavator Bulldozer
Part number: 320/08719 Packing: Standard Export Carton
강조하다:

JCB excavator alternator 12V

,

320/08719 alternator engine part

,

9TST compatible alternator with warranty

  • 320/08719 Alternator JCB Excavator Engine Parts Fitting For 9TST 12V





  • Specification
Name Alternator
Parts No 320/08719
Voltage 12V
Category Engine Parts
Lead time 1-3 DAYS
Quality Brand new, OEM quality
MOQ 1 PCS
Means of transport By sea/air, DHL FEDEX UPS TNT EMS
Packing As request or standard packing





  • Technical specifications

1.Voltage and Current Output: This alternator operates at 12 volts and provides an output current of 95 amps, which is sufficient to power the electrical systems of relevant JCB equipment and recharge the battery.



2.Mounting and Dimensions: The mount hole ID 1 is M10 x 1.50 threaded, and mount hole 2 is unthreaded, with an alt mounting foot ID of 10.200 mm. These precise dimensions ensure it can be accurately installed in the dedicated positions of corresponding machine models.



3.Pulley Information: It is equipped with a solid pulley having an outer diameter of 56.200 mm and eight grooves, which interfaces with the engine's belt drive to obtain rotational mechanical energy.



4.Electrical Configuration: Its terminal B+ size is M8 x 1.25, and it features negative polarity. The regulator and fan are internally located, which helps safeguard these key components from dust and other harsh operating conditions.





  • More other altemator parts fit for JCB machine
714/40273 Alternator assembly 24V-40Amp
JCB

714/34300 Alternator 24.volt
JCB

714/40529 Alternator assembly
JCB

714/40406 Alternator 24V 50amp
JCB

714/20400 Alternator 65Amp shielded
JCB

320/08610 Alternator 14V-95AMP
JCB

320/08560 Alternator 12V-95AMP
JCB

335/B4246 Alternator
JCB





  • Catalog parts list
Pos. Part No Qty Parts name Comments
1 320/03029 [1] Seal rear oil
2 320/09454 [1] Motor Starter 12V
3 320/08719 [1] Alternator 12V 95A MFR
4 320/04090 [2] Cap Oil Filler Assembly
5 320/04555 [1] Sensor Temperature coolant (2 pin)
6 320/08598 [1] Belt drive L=1835
7 320/04510 [1] Gasket water pump
8 320/04542 [1] Pump water assembly
9 320/03119 [1] Seal front oil
10 320/08759 [1] Tensioner Auto-Tensioner
11 320/04133A [1] Oil Filter
12 320/07853 [1] Element Filter CCV
13 320/07382 [1] Element fuel filter
14 320/06194 [1] Pressure sensor

320/08719 Alternator JCB Excavator Engine Parts Fitting For 9TST 12V 0







  • We could supply the following spare parts



1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.



2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.



3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.



4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.



5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.



6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.







  • Advantage



1. Offer Top quality & competitive products


2. Support 12-month warranty


3. 100% tested before shipping


4. Delivery in time


5. A wide range of Oil Pressure Sensor, Fuel Tank Level Sensor, Temperature Sensor, Speed Sensor for excavator


6. More than 15 years production and 11 years foreign trade experience


7. Professional QC team


8. Best sales team, 24 hours service







  • Packing and Shipping



Packing Details :



inner packing : plastic film for wrapping



external packing : wooden



Shipping :



within 3 days after received the payment , by air or by express or by sea on the basis of the

quantity and emergency circumstances.



1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,



2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.



3. By Sea: Delivery from the Huangpu port .
