제품 상세 정보:
결제 및 배송 조건:
|
| 범주: | 엔진 부품 | 부품 번호: | 22205087 21496615 |
|---|---|---|---|
| 제품명: | 터보차저 | 기계번호: | L110F L120E L120F L120G Z L105 G940 |
| 애플리케이션: | 굴착기 | 리드타임: | 배송까지 1~3일 |
| 포장: | 표준 수출 상자 | ||
| 강조하다: | Turbocharger for L110F excavator,Excavator engine turbocharger parts,L120E turbocharger with warranty |
||

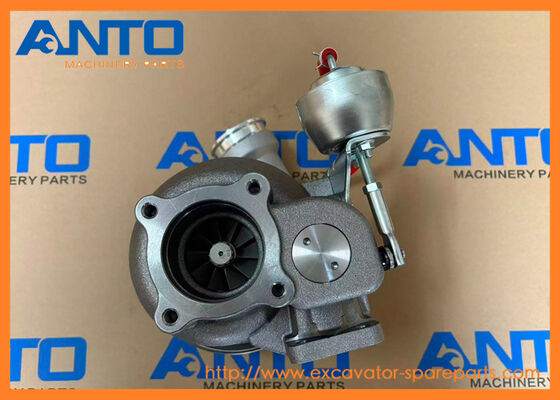

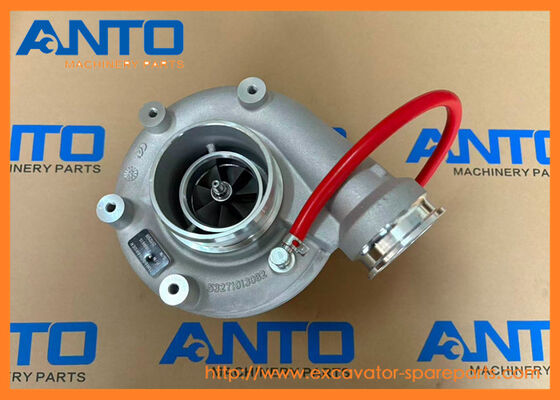

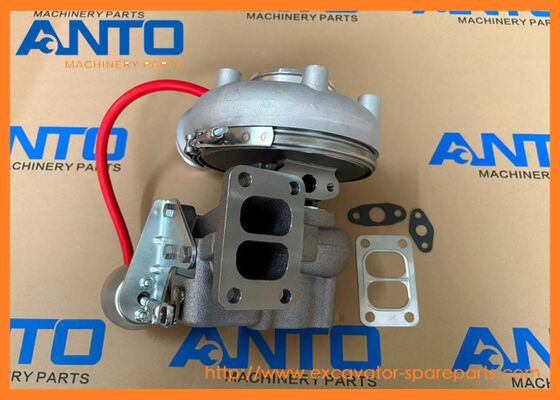

22205087 21496615 Turbocharger Excavator Spare Parts Fit For L110F L120E L105 G940
Specifiion
| Category | Engine Parts |
| Name | Turbocharger |
| Parts No | 22205087 21496615 |
| Machine Number | L110F L120E L120F L120G Z L105 G940 G946 G970 |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
| Working Principle | 1. Exhaust-Driven Turbine: Hot exhaust gas from the engine flows through the turbine housing, spinning the turbine wheel (150,000+ RPM). |
| 2. Compressor Operation: The turbine wheel is connected to a coaxial compressor wheel, which draws in ambient air and compresses it (boost pressure: 2.5–3.0 bar). | |
| 3. Air Cooling: Compressed air passes through an intercooler to reduce temperature (denser air = more oxygen for combustion). | |
| 4. Wastegate Regulation: When boost pressure exceeds the set limit, the pneumatic actuator opens the wastegate, diverting excess exhaust gas around the turbine to slow it down – maintaining safe boost levels. | |
| 5. Power Enhancement: Denser, cooler air enters the engine’s combustion chamber, allowing more fuel to be burned efficiently – increasing power output by 30–40% and improving fuel efficiency by 10–15% vs. naturally aspirated engines. | |
| Core Functions | 1. Power Boost: Increases engine horsepower and torque (critical for heavy-load tasks like digging, hauling, and climbing) |
| 2. Fuel Efficiency: Optimizes combustion by delivering more oxygen – reduces fuel consumption and exhaust emissions (meets Euro V/Stage IV standards) | |
| 3. Altitude Compensation: Maintains engine performance at high altitudes (where air density is low) | |
| 4. Emission Control: Improves fuel atomization and combustion completeness – reduces NOₓ and particulate matter (PM) emissions | |
| 5. Engine Protection: Wastegate prevents overboost, avoiding engine damage from excessive cylinder pressure |
LOADERSL110E L110F L120E L120F L120G Z L105
MOTOR GRADERS G940 G946 G970 G976 G930 G990 G960 Vo.lvo.
| VOE17467114 Turbocharger |
| .Heavy |
| VOE17431000 Turbocharger |
| Heavy |
| VOE17229091 Turbocharger |
| Heavy |
| VOE17475212 Turbocharger |
| A60H |
| VOE22714902 Turbocharger |
| DD105 |
| VOE22918832 Turbocharger |
| Heavy |
| VOE22918829 Turbocharger |
| Heavy |
| VOE22918827 Turbocharger |
| Heavy |
| VOE22840560 Turbocharger |
| Heavy |
| VOE22303590 Turbocharger |
| Heavy |
| VOE22224630 Turbocharger |
| Heavy |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | VOE22205087 | [1] | Turbocharger | S/N -11605639 SEE SB 255 WLO 035 |
| 1 | VOE22283480 | [1] | Turbocharger | S/N 11605640- |
| 2 | VOE22067368 | [1] | Breather pipe | |
| 3 | VOE20405568 | [1] | Clip | |
| 4 | VOE20834570 | [1] | Retainer | |
| 5 | VOE21619223 | [1] | Hose retainer | |
| 6 | VOE21593670 | [1] | Return line | |
| 7 | VOE20405822 | [1] | Sealing ring | |
| 8 | VOE21242584 | [1] | Gasket | |
| 9 | VOE20405885 | [2] | Screw | |
| 10 | VOE21511617 | [1] | Bracket | |
| 11 | VOE20405792 | [1] | Screw | |
| 12 | VOE21552542 | [1] | Oil line | |
| 13 | VOE22362192 | [2] | Attachment kit | |
| 14 | VOE13947621 | [4] | Plane gasket | |
| 15 | VOE20450987 | [1] | Clamp | |
| 16 | VOE20405792 | [1] | Screw | |
| 17 | VOE20792408 | [1] | Gasket | |
| 18 | VOE20412314 | [4] | Stud | |
| 19 | VOE20412308 | [4] | Hexagon nut | |
| 20 | VOE21793270 | [1] | Gasket | |
| 21 | VOE20412314 | [4] | Stud | |
| 22 | VOE20412308 | [4] | Hexagon nut |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
