제품 상세 정보:
결제 및 배송 조건:
|
| 범주: | 엔진 부품 | 부품 번호: | 158-8250 1588250 |
|---|---|---|---|
| 제품명: | 파일럿 밸브 | 기계번호: | 312C 315C 318C 319C 320C 322C 323D 엘 |
| 애플리케이션: | 굴착기 | 리드타임: | 배송까지 1~3일 |
| 포장: | 표준 수출 상자 | ||
| 강조하다: | 312C excavator pilot valve,315C engine replacement parts,320C compatible pilot valve |
||

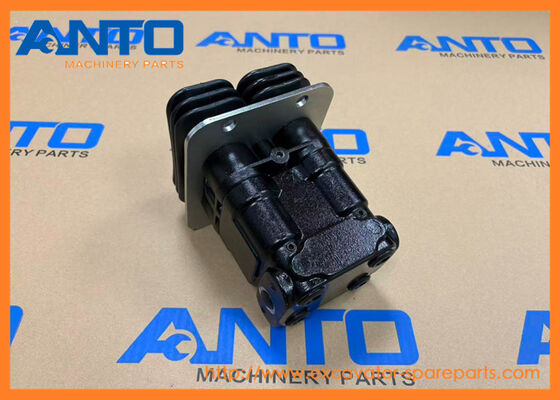

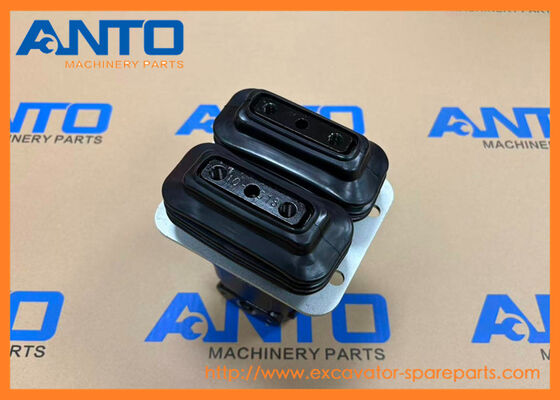

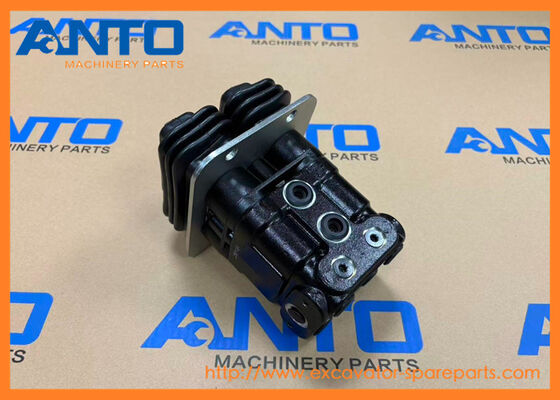

158-8250 1588250 Pilot Valve Excavator Engine Parts Fit For 312C 315C 318C 319C 320C 322C
Specifiion
| Category | Engine Parts |
| Name | Pilot Valve |
| Parts No | 158-8250 1588250 |
| Machine Number | 312C 315C 318C 319C 320C 322C 323D L |
| Lead time | 1-3 DAYS |
| Quality | Brand new, OEM quality |
| MOQ | 1 PCS |
| Means of transport | By sea/air, DHL FEDEX UPS TNT |
| Packing | As request or standard packing |
| Working Principle | 1. Pilot Oil Supply: Low-pressure pilot oil (from the main hydraulic pump’s pilot circuit) enters the valve through the inlet port. |
| 2. Operator Input: When the operator moves the control lever (e.g., boom lift), the lever mechanical linkage (or electric actuator) shifts the valve spool. | |
| 3. Signal Transmission: Spool movement opens flow paths, directing pilot oil to the corresponding chamber of the high-pressure main control valve. | |
| 4. Main Valve Actuation: The pilot oil pressure pushes the main valve spool, allowing high-pressure hydraulic oil (20–35 MPa / 2,900–5,075 psi) to flow to the boom cylinder – initiating the lifting action. | |
| 5. Neutral Position: When the lever is released, the spring centers the spool, cutting off pilot oil to the main valve and stopping the movement. | |
| Core Functions | 1. Precise Movement Control: Translates operator lever input into hydraulic signals to regulate excavator movements (boom, arm, bucket, turntable) – ensures smooth, proportional control (e.g., slow, precise bucket tilting for loading). |
| 2. Pressure Signal Amplification: Uses low-pressure pilot oil to actuate high-pressure main valves – reduces operator effort (vs. direct manual actuation of main valves). | |
| 3. Fail-Safe Operation: Spring-centered spool prevents unintended movement if the operator releases controls or power is lost – enhances job site safety. | |
| 4. Circuit Protection: Integrated relief valve and surge resistance prevent pilot circuit damage from pressure spikes – extends valve service life. |
EXCAVATOR 312C 315C 318C 319C 320C 320C FM 320C L 320D 320D LRR 321C 322C 322C FM 323D L 323D LN 324D 324D L 324D LN 325C 325C FM 325C L 325D 325D L 330C 330C FM 330C L 330C MH 330D L 330D LN
LOGGER 322C
MOBILE HYD POWER UNIT 325C 330C C.ate.rpillar.
| 5I7739 VALVE |
| 311, 311B, 311C, 312B, 312C, 312C L, 314C, 318C, 319C, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D LRR, 320N, 321C, 323D L, 323D LN |
| 5I7738 VALVE |
| 311, 311B, 311C, 312B, 312C L, 320 L, 320B, 320C, 320C FM, 320N |
| 5I8026 VALVE AS |
| 311, 311B, 311C, 312, 312B, 312C, 312C L, 314C, 318C, 319C, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM RR, 320D LRR, 320D RR, 320N, 321C, 321D LCR, 323D L, 323D LN |
| 5I8066 VALVE AS-RELIEF |
| 311, 311B, 311C, 311D LRR, 312, 312B, 312C, 312C L, 312D, 312D L, 313D, 314C, 314D CR, 314D LCR, 315D L, 318C, 318D L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320C, 320C FM, 320C L, 320D, 320D FM, 3... |
| 5I7643 VALVE |
| 311, 311B, 311C, 312, 312B, 312C, 312C L, 314C, 318C, 319C, 320 L, 320B, 320B U, 320C, 320C FM, 320C L, 320D, 320D LRR, 320N, 321C, 323D L, 323D LN |
| 1318901 VALVE-DUST |
| 311B, 311C, 311D LRR, 312B, 312C L, 312D, 312D L, 312D2, 312D2 GC, 312D2 L, 313D, 313D2, 313D2 LGP, 314C, 314D CR, 314D LCR, 320C, 320C FM, 320C L, 320D FM RR, 320D LRR, 320D RR, 320E, 320E L, 320E LN... |
| 0952489 VALVE |
| 311, 311B, 311C, 312B, 312C, 312C L, 314C, 318C, 319C, 320 L, 320B, 320B FM LL, 320C, 320C FM, 320C L, 320D, 320D LRR, 321C, 323D L, 323D LN, E110, E110B, E120B, E200B, E450 |
| 1710031 VALVE GP-RELIEF |
| 312C, 312C L, 315C, 318C, 319C, 320C, 320C FM, 320C L, 320D, 320D FM RR, 320D LN, 320D LRR, 320D RR, 321C, 321D LCR, 322C, 323D L, 323D LN, 324D, 325C, 325D, 325D L, 330C, 330C L, 330D, 330D L |
| 2128477 VALVE |
| 311C, 312C, 312C L, 314C, 318C, 319C, 320C, 320C FM, 320C L, 320D, 320D LRR, 321C, 323D L, 323D LN |
| 5I7559 VALVE AS |
| 318C, 319C, 320, 320 L, 320B, 320B FM LL, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320N, 321C, 321D LCR, 323D L, 323D LN, 323D SA |
| 7Y4267 VALVE |
| 315D L, 316E L, 318C, 318D L, 318E L, 319C, 319D, 319D L, 319D LN, 320 L, 320B, 320B L, 320C, 320C FM, 320C L, 320D, 320D FM, 320D FM RR, 320D GC, 320D L, 320D LN, 320D LRR, 320D RR, 320D2, 320D2 GC |
| Pos. | Part No | Qty | Parts name | Comments |
| 1 | 096-6166 | [2] | WASHER-HARD (4.5X9X1-MM THK) | |
| 2 | 095-0728 M | [2] | SCREW-MACHINE (M4X0.7X12-MM) | |
| 3 | 8T-4121 | [12] | WASHER-HARD (11X21X2.5-MM THK) | |
| 4 | 8T-4136 M | [4] | BOLT (M10X1.5X25-MM) | |
| 5 | 8T-4191 M | [8] | BOLT (M10X1.5X16-MM) | |
| 6 | 142-5546 | [2] | KNOB | |
| 7 | 117-6356 | [2] | STEP AS | |
| 8 | 122-9610 | [2] | STEP | |
| 9 | 170-9499 | [1] | LEVER AS (LH) | |
| 10 | 170-9498 | [1] | LEVER AS (RH) | |
| 11 | 122-9608 | [1] | PEDAL-RUBBER (RH) | |
| 12 | 117-6350 | [1] | PEDAL AS (RH) | |
| 13 | 122-9609 | [1] | PEDAL-RUBBER (LH) | |
| 14 | 117-6349 | [1] | PEDAL AS (LH) | |
| M | METRIC PART |
1 Hydraulic parts: hydraulic pump, main valve, hydraulic cylinder, final drive, travel motor, swing machinery, swing motor etc.
2 Engine parts: engine ass’y, piston, piston ring, cylinder block, cylinder head, crankshaft, turbocharger, fuel injection pump, starting motor and alternator etc.
3 Undercarriage part: Track roller, Carrier roller, Track Link, Track shoe, Sprocket, Idler and Idler cushion etc.
4 Cab parts: operator’s cab, wiring harness, monitor, controller, seat, door etc.
5 Cooling parts: Radiator, air conditioner, compressor, after cooler etc.
6 Other parts: Service kit, swing circle, engine hood, swing joint, fuel tank, filter, boom, arm, bucket etc.
Packing Details :
inner packing : plastic film for wrapping
external packing : wooden
Shipping :
within 3 days after received the payment , by air or by express or by sea on the basis of the
quantity and emergency circumstances.
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier companies we are cooperated,
2. By Air: Delivery from the Guangzhou air port to customer's destination city air port.
3. By Sea: Delivery from the Huangpu port .
